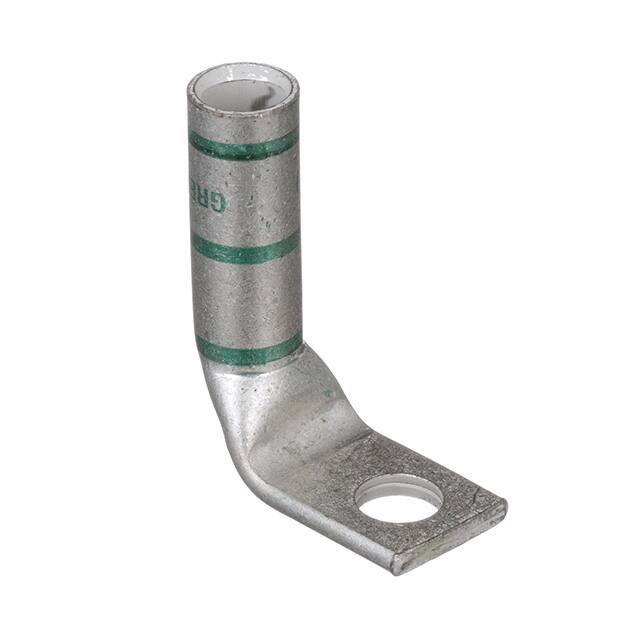

Panduit lugs [LCBX1-38F-X], PAD454

Name: Panduit lugs [LCBX1-38F-X], PAD454
Brand: Panduit
SKU: PAD454
Availability: InStock

Mã kho: PAD454

Mã nhà sản xuất: LCBX1-38F-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, flex lug, long barrel, #1 AWG, 3/8 stud hole, 90° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.6
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.76
Tongue Width (mm)	19.3
Tongue Angle	90°
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	1.58
Overall Length (mm)	40.1
Color Code	Green
Panduit Die Index Number	P37
Burndy Die Index Number	11
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
