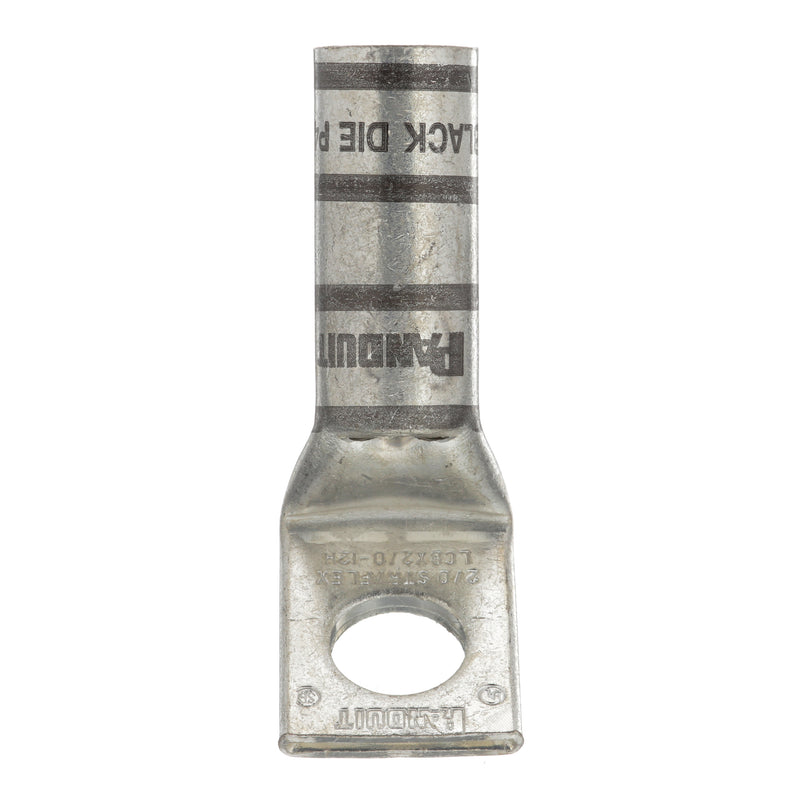

Panduit lugs [LCBX2/0-12H-X], PAD477

Name: Panduit lugs [LCBX2/0-12H-X], PAD477
Brand: Panduit
SKU: PAD477
Availability: InStock

Mã kho: PAD477

Mã nhà sản xuất: LCBX2/0-12H-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

One-hole, flex lug, long barrel, 2/0 AWG, 1/2 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.96
Tongue Width (mm)	24.4
Tongue Angle	45°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	2.47
Overall Length (mm)	62.7
Color Code	Black
Panduit Die Index Number	P45
Burndy Die Index Number	13
Wire Strip Length (In.)	15,625
Wire Strip Length (mm)	40
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
