Panduit lugs [LCBX2-14H-E], PAD472

Name: Panduit lugs [LCBX2-14H-E], PAD472
Brand: Panduit
SKU: PAD472
Availability: InStock

Mã kho: PAD472

Mã nhà sản xuất: LCBX2-14H-E

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

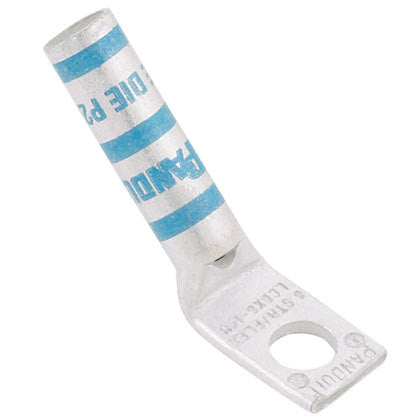

One-hole, flex lug, long barrel, #2 AWG, 1/4 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.36
Barrel Length (mm)	34.5
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.7
Tongue Width (mm)	17.8
Tongue Angle	45°
Tongue Thickness (In.)	0.11
Tongue Thickness (mm)	2.8
Overall Length (In.)	1.83
Overall Length (mm)	46.5
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (In.)	14,375
Wire Strip Length (mm)	37
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
