Panduit lugs [LCBX250-38-X], PAD485

Name: Panduit lugs [LCBX250-38-X], PAD485
Brand: Panduit
SKU: PAD485
Availability: InStock

Mã kho: PAD485

Mã nhà sản xuất: LCBX250-38-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

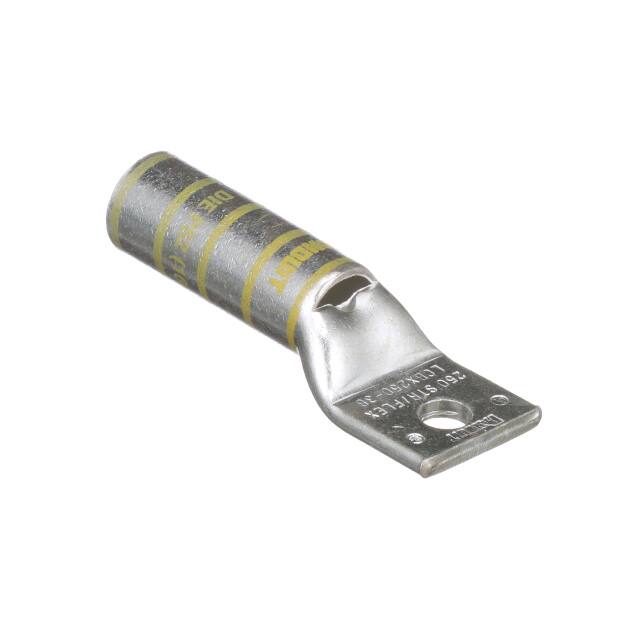

One-hole, flex lug, long barrel, 250 kcmil, 3/8 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	2.24
Barrel Length (mm)	56.9
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Angle	Straight
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	3.78
Overall Length (mm)	96
Color Code	Yellow
Panduit Die Index Number	P62
Burndy Die Index Number	16
Wire Strip Length (In.)	23,125
Wire Strip Length (mm)	59
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
