Panduit lugs [LCBX4/0-12-X], PAD508

Name: Panduit lugs [LCBX4/0-12-X], PAD508
Brand: Panduit
SKU: PAD508
Price: 321570.0 VND
Availability: InStock

Mã kho: PAD508

Mã nhà sản xuất: LCBX4/0-12-X

Tên nhà sản xuất: Panduit

321.570₫ - 321.570₫

321.570₫

321.570₫ - 321.570₫

321.570₫

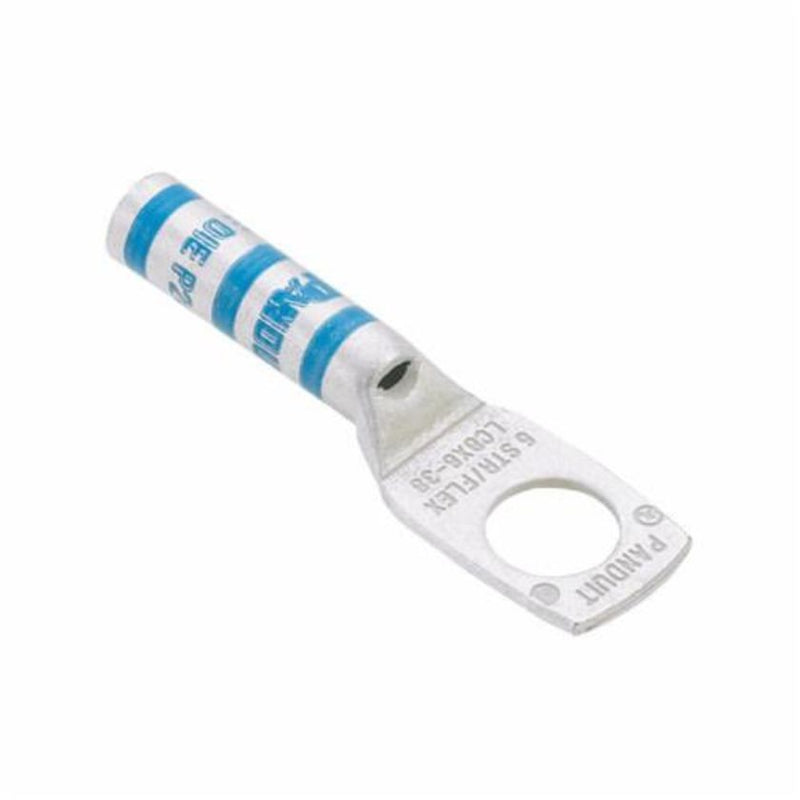

One-hole, flex lug, long barrel, 4/0 AWG, 1/2 stud hole.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	2.24
Barrel Length (mm)	56.9
Tongue Type	Standard Tongue Width
Tongue Width (In.)	1.19
Tongue Width (mm)	30.2
Tongue Angle	Straight
Tongue Thickness (In.)	0.16
Tongue Thickness (mm)	4.1
Overall Length (In.)	3.85
Overall Length (mm)	97.8
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
Wire Strip Length (In.)	23,125
Wire Strip Length (mm)	59
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
