Panduit lugs [LCBX4-14H-L], PAD505

Name: Panduit lugs [LCBX4-14H-L], PAD505
Brand: Panduit
SKU: PAD505
Availability: InStock

Mã kho: PAD505

Mã nhà sản xuất: LCBX4-14H-L

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

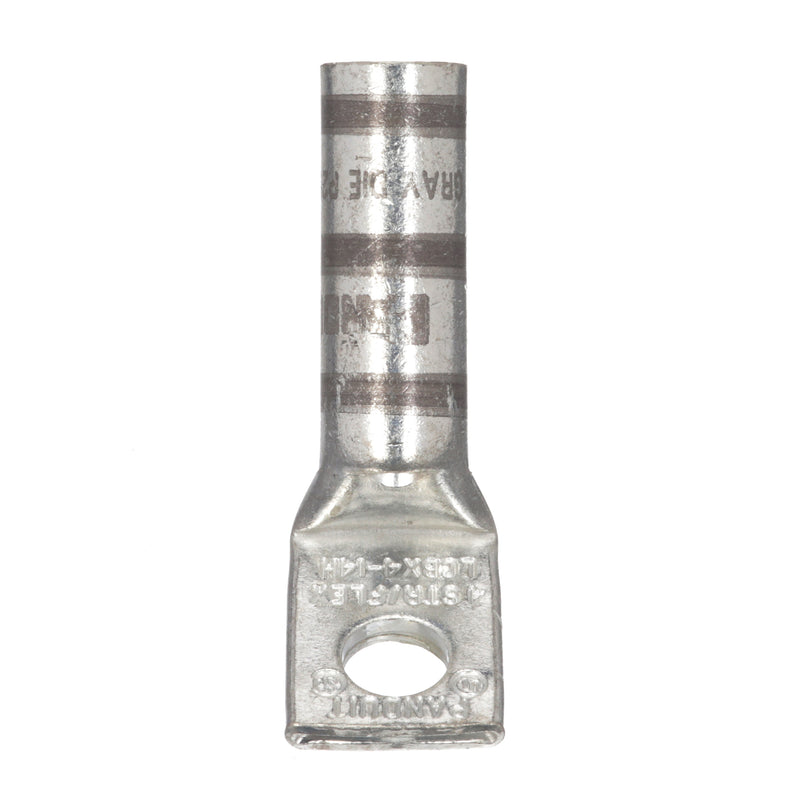

One-hole, flex lug, long barrel, #4 AWG, 1/4 stud hole, 45° angle tongue.

Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.05
Barrel Length (mm)	26.7
Tongue Type	Standard Tongue Width
Tongue Width (In.)	0.55
Tongue Width (mm)	14
Tongue Angle	45°
Tongue Thickness (In.)	0.09
Tongue Thickness (mm)	2.3
Overall Length (In.)	1.57
Overall Length (mm)	39.9
Color Code	Gray
Panduit Die Index Number	P29
Burndy Die Index Number	8
Wire Strip Length (In.)	1,125
Wire Strip Length (mm)	29
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window.
