Panduit lugs [LCC1/0-38DWF-X], PAC443

Name: Panduit lugs [LCC1/0-38DWF-X], PAC443
Brand: Panduit
SKU: PAC443
Price: 660090.0 VND
Availability: InStock

Mã kho: PAC443

Mã nhà sản xuất: LCC1/0-38DWF-X

Tên nhà sản xuất: Panduit

660.090₫ - 660.090₫

660.090₫

660.090₫ - 660.090₫

660.090₫

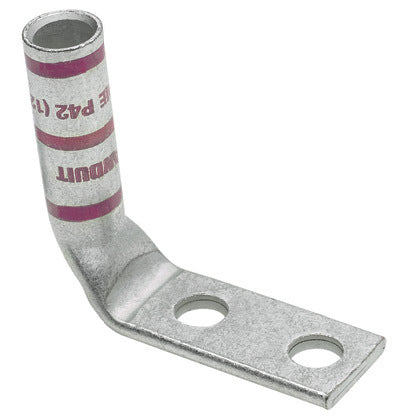

Two-hole, long barrel lug with window, 1/0 AWG wire, 3/8 stud hole, 1 hole spacing, 90° angle tongue.

Copper Conductor Size (AWG)	1/0
Copper Conductor Size (kcmil)	106
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.6
Tongue Type	Standard
Tongue Width (In.)	0.76
Tongue Width (mm)	19.3
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	2.58
Overall Length (mm)	65.5
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
