Panduit lugs [LCC1000-12-3], PAD571

Name: Panduit lugs [LCC1000-12-3], PAD571
Brand: Panduit
SKU: PAD571
Price: 2288450.0 VND
Availability: InStock

Mã kho: PAD571

Mã nhà sản xuất: LCC1000-12-3

Tên nhà sản xuất: Panduit

2.288.450₫ - 2.288.450₫

2.288.450₫

2.288.450₫ - 2.288.450₫

2.288.450₫

📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC1000-12-3

MÔ TẢ SẢN PHẨM

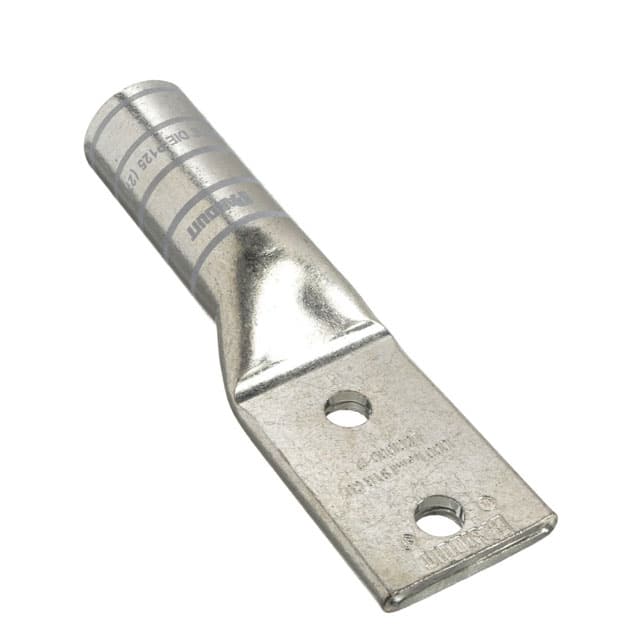

The LCC1000-12-3 Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance

_THÔNG SỐ KỸ THUẬT:

Inside Diameter (In.)	1.17
Inside Diameter (mm)	29.71
Outer Diameter (In.)	1.5
Outer Diameter (mm)	38.1
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Lug Type	2 Stud Hole Lug
Base Material	Copper
Copper Code Conductor Size (kcmil)	1000
Sub Brand	Pan-Lug™
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Long Barrel without Inspection Window
Barrel Length (In.)	3
Barrel Length (mm)	76.2
Tongue Type	Standard
Tongue Width (In.)	2.17
Tongue Width (mm)	55.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.32
Tongue Thickness (mm)	8.1
Overall Length (In.)	7.29
Overall Length (mm)	185.2
Finish/Coating	Tin-Plated
Standards Met	C22.2 No. 65-13, 486A-486B File #E52164
UL Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	White
Panduit Die Index Number	P125
Burndy Die Index Number	27
T & B Die Index Number	27
Wire Strip Length (In.)	3-1/16
Wire Strip Length (mm)	77.7
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
