Panduit lugs [LCC1250-12-3], PAE495

Mã kho: PAE495
Mã nhà sản xuất: LCC1250-12-3
Tên nhà sản xuất: Panduit
Original price 0₫ - Original price 0₫
Original price
0₫
0₫ - 0₫
Current price 0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC1250-12-3

MÔ TẢ SẢN PHẨM

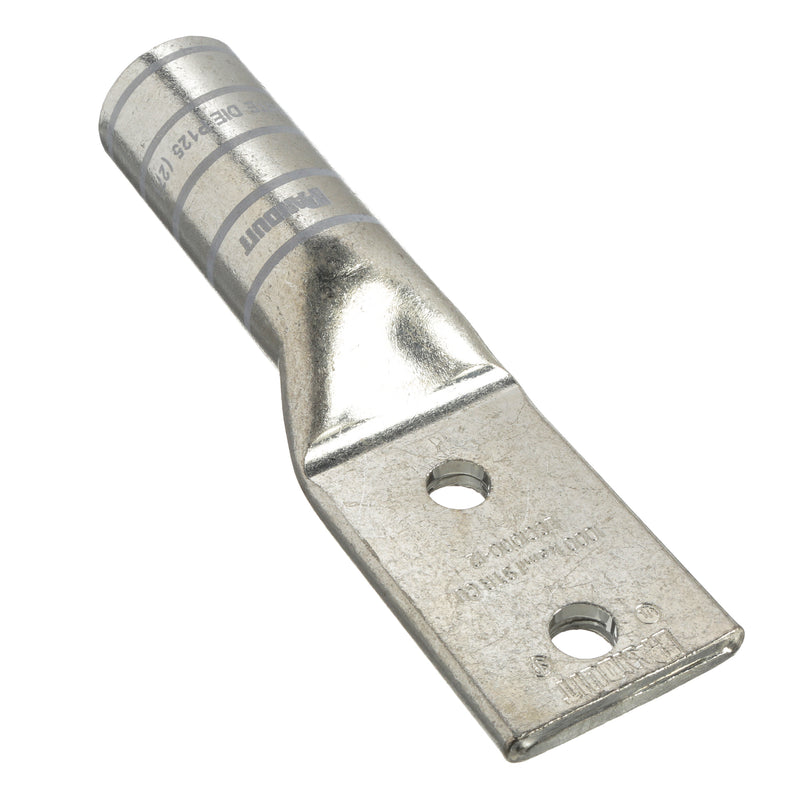

Copper Compression Lug, 2 Hole, 1250 kcmil, 1/2" (12,7mm) Stud, 1.75" Hole Spacing

_THÔNG SỐ KỸ THUẬT:

Lug Type 2 Stud Hole Lug
Sub Brand Pan Lug
Stud Hole Size (mm) 12.7
Stud Hole Spacing (In.) 1.75
Stud Hole Spacing (mm) 44.45
Barrel Type Long Barrel without Inspection Window
Barrel Length (In.) 3.32
Barrel Length (mm) 84.3
Tongue Type Standard
Tongue Width (In.) 2.48
Tongue Width (mm) 63
Tongue Angle Straight
Tongue Thickness (In.) 0.37
Tongue Thickness (mm) 9.4
Overall Length (In.) 6.54
Overall Length (mm) 166.1
Finish/Coating Tin-Plated
Standards Met UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia
Maximum Voltage (kV) 35
Color Code Yellow
Panduit Die Index Number P140
Burndy Die Index Number 29
T & B Die Index Number 140
Wire Strip Length (mm) 85.7
