Panduit lugs [LCC2-12-Q], PAC459

Name: Panduit lugs [LCC2-12-Q], PAC459
Brand: Panduit
SKU: PAC459
Price: 266010.0 VND
Availability: InStock

Mã kho: PAC459

Mã nhà sản xuất: LCC2-12-Q

Tên nhà sản xuất: Panduit

266.010₫ - 266.010₫

266.010₫

266.010₫ - 266.010₫

266.010₫

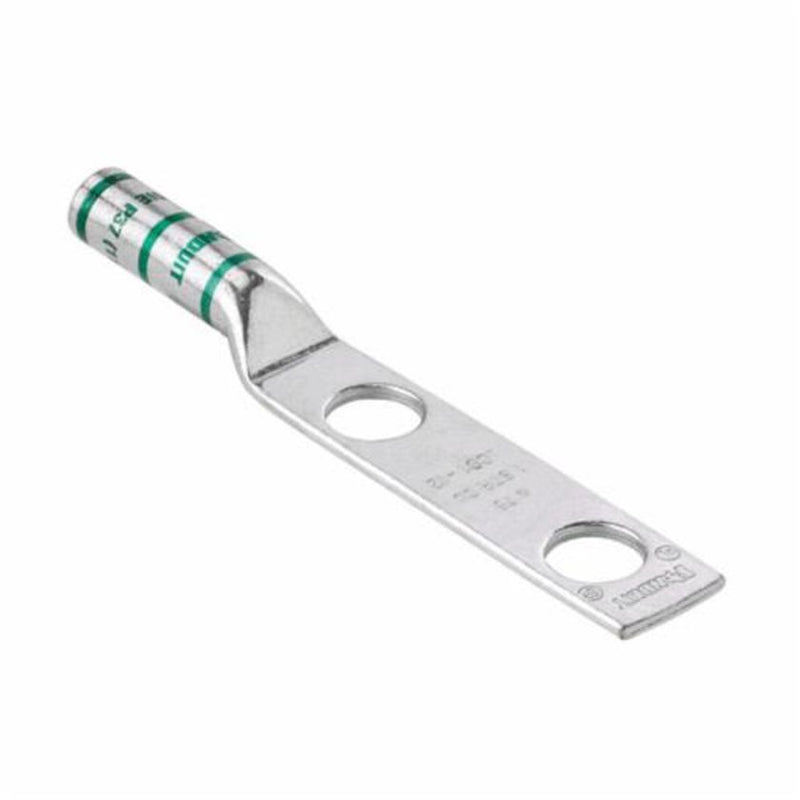

Two-hole, long barrel lug, #2 AWG wire, 1/2 stud hole, 1.75 hole spacing.

Copper Conductor Size (AWG)	#2
Copper Conductor Size (kcmil)	66.36
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.16
Barrel Length (mm)	29.5
Tongue Type	Standard
Tongue Width (In.)	0.75
Tongue Width (mm)	19.1
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	4.51
Overall Length (mm)	114.6
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (In.)	1.25
Wire Strip Length (mm)	31.8
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
