Panduit lugs [LCC2000-12WH-1], PAD621

Name: Panduit lugs [LCC2000-12WH-1], PAD621
Brand: Panduit
SKU: PAD621
Availability: InStock

Mã kho: PAD621

Mã nhà sản xuất: LCC2000-12WH-1

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

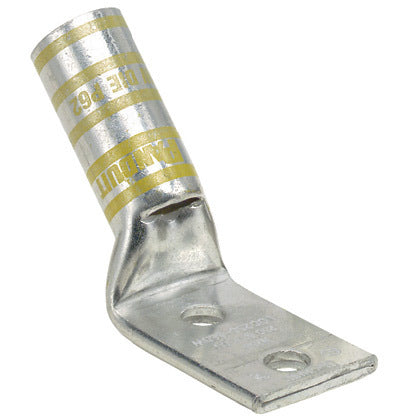

Copper Compression Lug, 2 Hole, 2000 kcmil, 1/2 (12.7mm) Stud, 1.75 (44.4mm) Hole Spacing, 45° Bend

Product Type	Tin-Plated Copper Compression Connectors-Lug
Lug Type	2 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	0.5
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.45
Barrel Type	Long Barrel with Inspection Window
Barrel Length (In.)	3.5
Barrel Length (mm)	88.9
Tongue Type	Standard
Tongue Width (In.)	3.1
Tongue Width (mm)	78.74
Tongue Angle	45°
Tongue Thickness (In.)	0.45
Tongue Thickness (mm)	11.43
Overall Length (In.)	6.82
Overall Length (mm)	173.228
Finish/Coating	Tin-Plated
Standards Met	c UL us Listed , 90° C temperature rating when crimped with specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Brown
Panduit Die Index Number	NA
Burndy Die Index Number	34
T & B Die Index Number	NA
Wire Strip Length (In.)	3-5/8
Wire Strip Length (mm)	92.075
