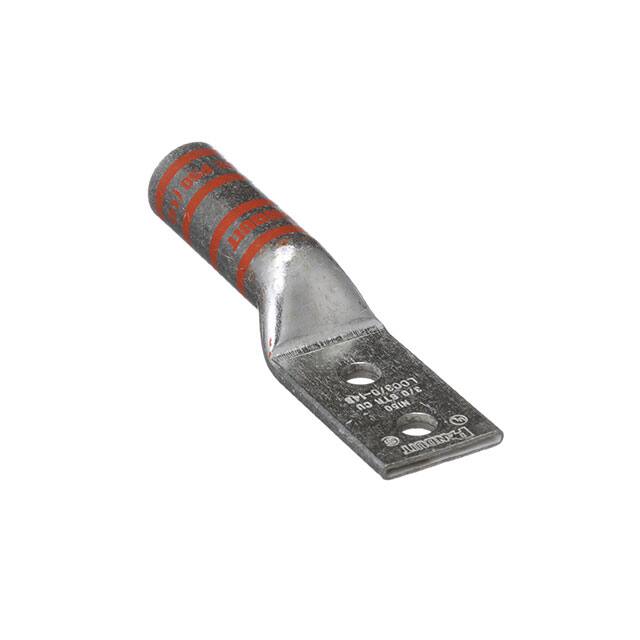

Panduit lugs [LCC3/0-14B-X], PAC525

Name: Panduit lugs [LCC3/0-14B-X], PAC525
Brand: Panduit
SKU: PAC525
Price: 718390.0 VND
Availability: InStock

Mã kho: PAC525

Mã nhà sản xuất: LCC3/0-14B-X

Tên nhà sản xuất: Panduit

718.390₫ - 718.390₫

718.390₫

718.390₫ - 718.390₫

718.390₫

Two-hole, long barrel lug, 3/0 AWG wire, 1/4 stud hole, .75 hole spacing.

Copper Conductor Size (AWG)	3/0
Copper Conductor Size (kcmil)	168
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Standard
Tongue Width (In.)	0.96
Tongue Width (mm)	24.4
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	3.56
Overall Length (mm)	90.4
Color Code	Orange
Panduit Die Index Number	P50
Burndy Die Index Number	14
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	39.7
Part Features	Tin plated to inhibit corrosion,color coded barrel, NEBS level 3.
