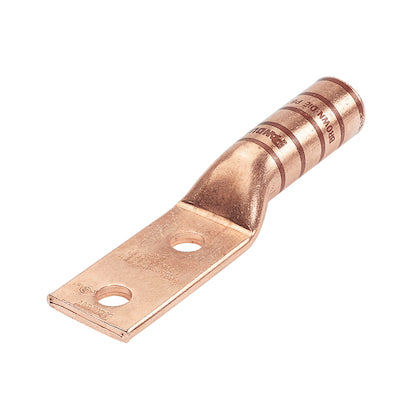

Panduit lugs [LCC4/0-12-B-X], PAD670

Mã kho: PAD670
Mã nhà sản xuất: LCC4/0-12-B-X
Tên nhà sản xuất: Panduit
Original price 424.010₫ - Original price 424.010₫
Original price
424.010₫
424.010₫ - 424.010₫
Current price 424.010₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC4/0-12-B-X

MÔ TẢ SẢN PHẨM

Direct Burial Grounding Lug for 4/0 AWG wire.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) 4/0
Copper Conductor Size (kcmil) 212
Product Type Copper Compression Grounding Lug
Sub Brand Pan-Lug
Stud Hole Size (In.) 0.5
Stud Hole Size (mm) 12.7
Stud Hole Spacing (In.) 1.75
Stud Hole Spacing (mm) 44.4
Barrel Type Long Barrel Length without Inspection Window
Barrel Length (In.) 1.56
Barrel Length (mm) 39.6
Tongue Type Standard
Tongue Width (In.) 1.06
Tongue Width (mm) 26.9
Tongue Thickness (In.) 0.14
Tongue Thickness (mm) 3.6
Overall Length (In.) 5.13
Overall Length (mm) 130.3
Color Code Purple
Panduit Die Index Number P54
Burndy Die Index Number 15
Wire Strip Length (In.) 1.625
Wire Strip Length (mm) 41.3
Includes Anti-Ox. Compound in Barrel
