Panduit lugs [LCC4-14DW-L], PAD666

Name: Panduit lugs [LCC4-14DW-L], PAD666
Brand: Panduit
SKU: PAD666
Price: 232430.0 VND
Availability: InStock

Mã kho: PAD666

Mã nhà sản xuất: LCC4-14DW-L

Tên nhà sản xuất: Panduit

232.430₫ - 232.430₫

232.430₫

232.430₫ - 232.430₫

232.430₫

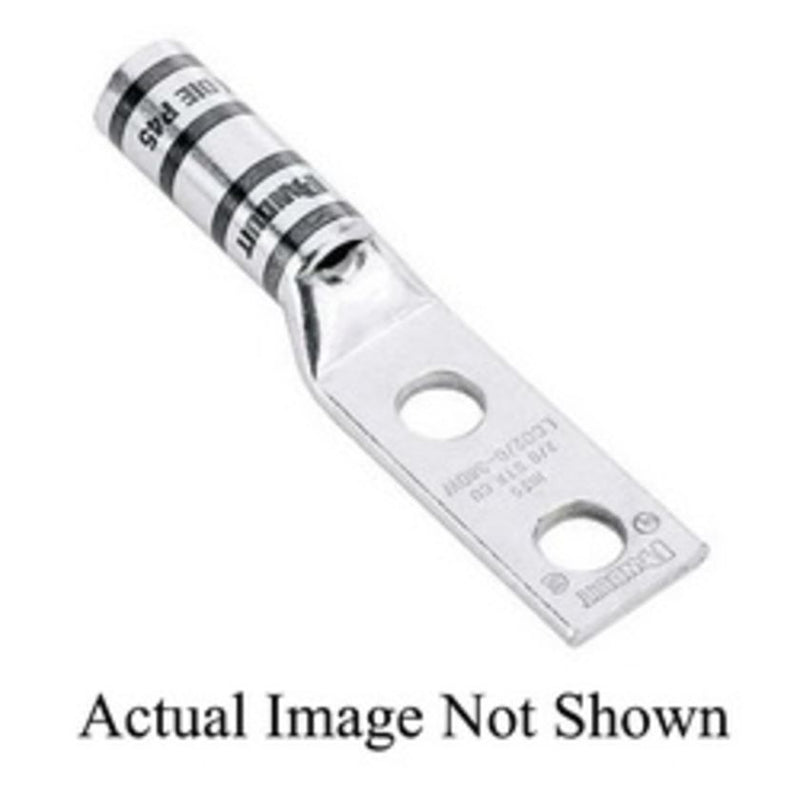

Two-hole, long barrel lug with window, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, 1 hole spacing.

Copper Conductor Size (AWG)	#4
Copper Conductor Size (kcmil)	42
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.05
Barrel Length (mm)	26.7
Tongue Type	Standard
Tongue Width (In.)	0.55
Tongue Width (mm)	14
Tongue Thickness (In.)	0.09
Tongue Thickness (mm)	2.3
Overall Length (In.)	2.63
Overall Length (mm)	66.8
Color Code	Gray
Panduit Die Index Number	P29
Burndy Die Index Number	8
Wire Strip Length (In.)	1.13
Wire Strip Length (mm)	28.6
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
