Panduit lugs [LCC500-12WH-6], PAD699

Name: Panduit lugs [LCC500-12WH-6], PAD699
Brand: Panduit
SKU: PAD699
Availability: InStock

Mã kho: PAD699

Mã nhà sản xuất: LCC500-12WH-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

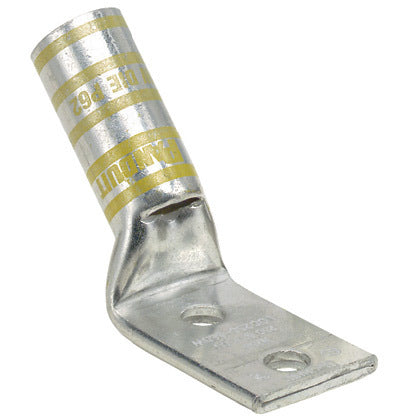

Two-hole, long barrel lug with window, 500 kcmil cable, 1/2 stud hole, 1.75 hole spacing, 45° angle tongue.

Copper Conductor Size (kcmil)	500
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	2.5
Barrel Length (mm)	63.5
Tongue Type	Standard
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	5.46
Overall Length (mm)	138.7
Color Code	Brown
Panduit Die Index Number	P87
Burndy Die Index Number	20
Wire Strip Length (In.)	2.56
Wire Strip Length (mm)	65.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
