Panduit lugs [LCC6-14JAWF-L], PAC619

Panduit lugs [LCC6-14JAWF-L], PAC619

Mã kho: PAC619
Mã nhà sản xuất: LCC6-14JAWF-L
Tên nhà sản xuất: Panduit
464.590₫ - 464.590₫
464.590₫
464.590₫ - 464.590₫
464.590₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCC6-14JAWF-L

MÔ TẢ SẢN PHẨM

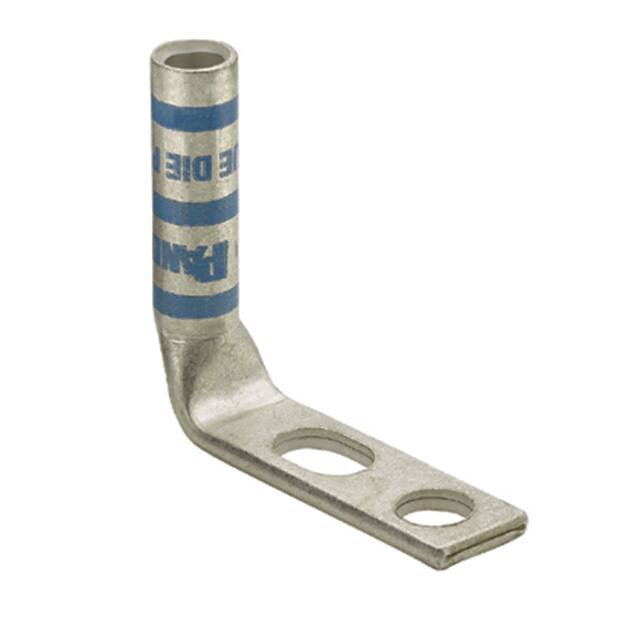

Two-hole, long barrel lug with window, #6 AWG wire, 1/4 stud hole, .50 — .63 hole spacing, 90° angle tongue.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #6
Copper Conductor Size (kcmil) 26.24
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Stud Hole Spacing (In.) 0.63
Stud Hole Spacing (mm) 16
Barrel Type Long Barrel Length with Inspection Window
Barrel Length (In.) 1.07
Barrel Length (mm) 27.2
Tongue Type Standard
Tongue Width (In.) 0.48
Tongue Width (mm) 12.2
Tongue Thickness (In.) 0.08
Tongue Thickness (mm) 2
Overall Length (In.) 1.66
Overall Length (mm) 42.2
Color Code Blue
Panduit Die Index Number P24
Burndy Die Index Number 7
Wire Strip Length (In.) 1.13
Wire Strip Length (mm) 28.6
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
