Panduit lugs [LCC6-38BW-L], PAC621

Name: Panduit lugs [LCC6-38BW-L], PAC621
Brand: Panduit
SKU: PAC621
Price: 225860.0 VND
Availability: InStock

Mã kho: PAC621

Mã nhà sản xuất: LCC6-38BW-L

Tên nhà sản xuất: Panduit

225.860₫ - 225.860₫

225.860₫

225.860₫ - 225.860₫

225.860₫

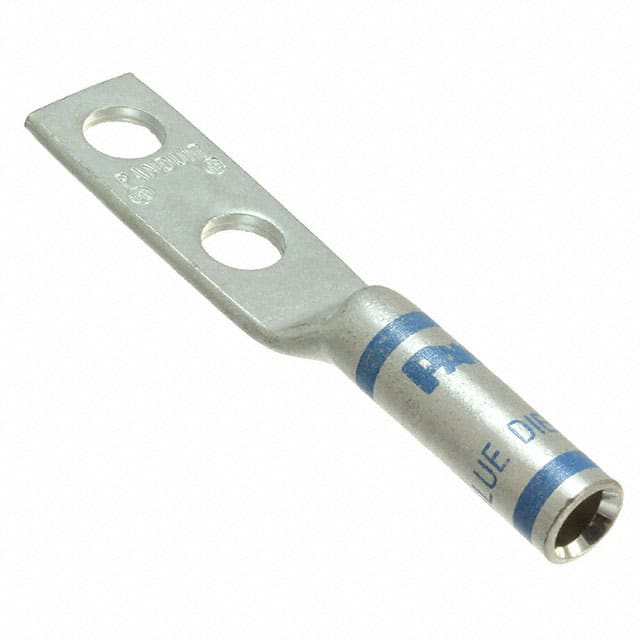

Two-hole, long barrel lug with window, #6 AWG wire, 3/8 stud hole, 75 hole spacing.

Copper Conductor Size (AWG)	#6
Copper Conductor Size (kcmil)	26.24
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.07
Barrel Length (mm)	27.2
Tongue Type	Standard
Tongue Width (In.)	0.62
Tongue Width (mm)	15.7
Tongue Thickness (In.)	0.06
Tongue Thickness (mm)	1.5
Overall Length (In.)	2.83
Overall Length (mm)	71.9
Color Code	Blue
Panduit Die Index Number	P24
Burndy Die Index Number	7
Wire Strip Length (In.)	1.13
Wire Strip Length (mm)	28.6
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
