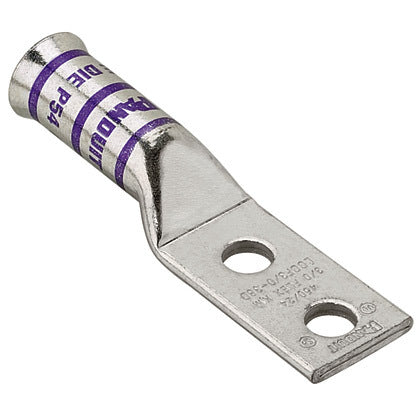

Panduit lugs [LCCF300-14B-6], PAD820

Name: Panduit lugs [LCCF300-14B-6], PAD820
Brand: Panduit
SKU: PAD820
Availability: InStock

Mã kho: PAD820

Mã nhà sản xuất: LCCF300-14B-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, long flared barrel, 300 kcmil cable, 1/4 bolt holes, .75 hole spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	2.3
Barrel Length (mm)	58.4
Tongue Type	Standard
Tongue Width (In.)	1.38
Tongue Width (mm)	35.1
Tongue Thickness (In.)	0.18
Tongue Thickness (mm)	4.6
Overall Length (In.)	4.44
Overall Length (mm)	112.8
Color Code	Red
Panduit Die Index Number	P71
Wire Strip Length (In.)	2.38
Wire Strip Length (mm)	60.3
Part Features	Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry.
