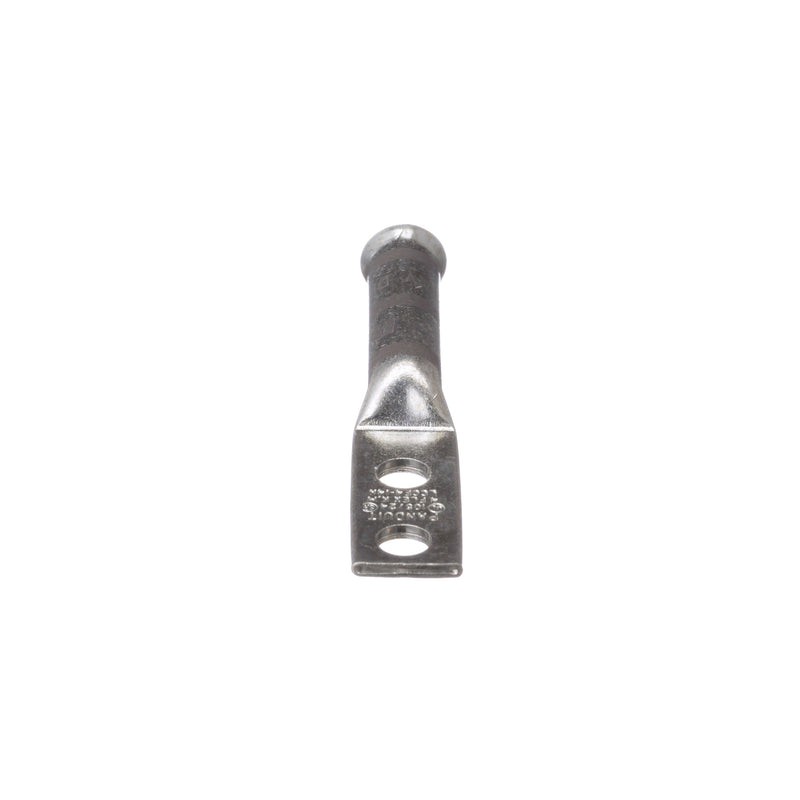

Panduit lugs [LCCF4-14A-L], PAC954

Name: Panduit lugs [LCCF4-14A-L], PAC954
Brand: Panduit
SKU: PAC954
Availability: InStock

Mã kho: PAC954

Mã nhà sản xuất: LCCF4-14A-L

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, long flared barrel, #4 AWG wire, 1/4 stud hole, 5/8 hole spacing, NEMA hole sizes and spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.63
Stud Hole Spacing (mm)	16
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.23
Barrel Length (mm)	31.2
Tongue Type	Standard
Tongue Width (In.)	0.55
Tongue Width (mm)	14
Tongue Thickness (In.)	0.09
Tongue Thickness (mm)	2.3
Overall Length (In.)	2.75
Overall Length (mm)	69.9
Color Code	Gray
Panduit Die Index Number	P29
Wire Strip Length (In.)	1.31
Wire Strip Length (mm)	33.3
Part Features	Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry.
