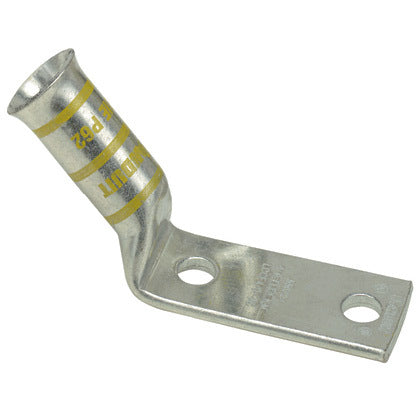

Panduit lugs [LCCF400-12H-6], PAD849

Name: Panduit lugs [LCCF400-12H-6], PAD849
Brand: Panduit
SKU: PAD849
Availability: InStock

Mã kho: PAD849

Mã nhà sản xuất: LCCF400-12H-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, long flared barrel, 400 kcmil cable, 1/2 bolt holes, 1.75 hole spacing, NEMA hole sizes and spacing, 45° angle tongue.

Product Type	Compression Connectors - Lugs
Stud Hole Size (In.)	1/2
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Tongue Type	Standard
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Tongue Width (In.)	1.7
Tongue Width (mm)	43.2
Overall Length (In.)	5.84
Overall Length (mm)	148.3
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	2.69
Barrel Length (mm)	68.3
Sub Brand	Pan-Lug
Wire Strip Length (In.)	2.75
Wire Strip Length (mm)	69.9
Part Features	Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry.
