Panduit lugs [LCCF6-14A-L], PAC955

Name: Panduit lugs [LCCF6-14A-L], PAC955
Brand: Panduit
SKU: PAC955
Price: 106400.0 VND
Availability: InStock

Mã kho: PAC955

Mã nhà sản xuất: LCCF6-14A-L

Tên nhà sản xuất: Panduit

106.400₫ - 106.400₫

106.400₫

106.400₫ - 106.400₫

106.400₫

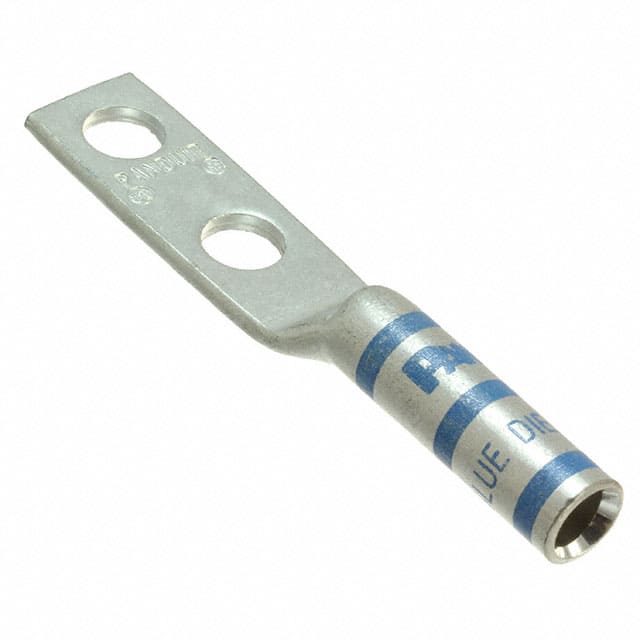

Two-hole, long flared barrel, #6 AWG wire, 1/4 stud hole, 5/8 hole spacing, NEMA hole sizes and spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.63
Stud Hole Spacing (mm)	16
Barrel Type	Long Barrel Length without Inspection Window
Barrel Length (In.)	1.22
Barrel Length (mm)	31
Tongue Type	Standard
Tongue Width (In.)	0.48
Tongue Width (mm)	12.2
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	2.71
Overall Length (mm)	68.8
Color Code	Blue
Panduit Die Index Number	P24
Wire Strip Length (In.)	1.31
Wire Strip Length (mm)	33.3
Part Features	Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry.
