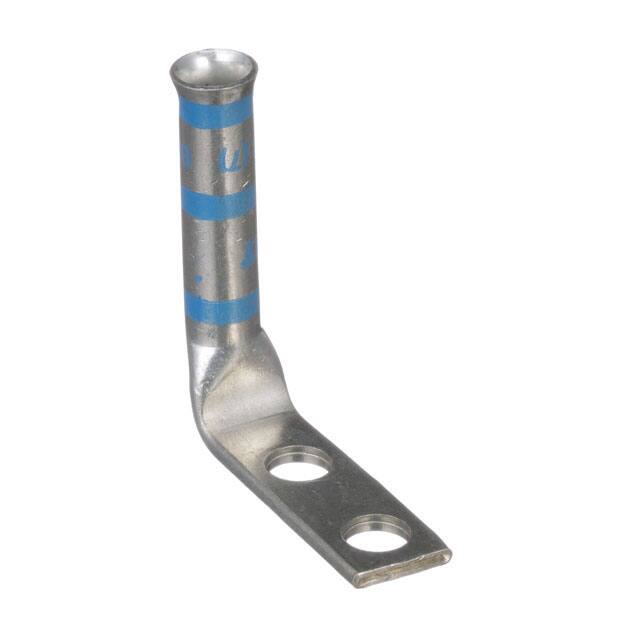

Panduit lugs [LCCF6-14AF-L], PAD856

Mã kho: PAD856
Mã nhà sản xuất: LCCF6-14AF-L
Tên nhà sản xuất: Panduit
Original price 143.710₫ - Original price 143.710₫
Original price
143.710₫
143.710₫ - 143.710₫
Current price 143.710₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCCF6-14AF-L

MÔ TẢ SẢN PHẨM

Two-hole, long flared barrel, #6 AWG wire, 1/4 stud hole, 5/8 hole spacing, NEMA hole sizes and spacing, 90° angle tongue.

_THÔNG SỐ KỸ THUẬT:

Product Type Compression Connectors - Lugs
Stud Hole Size (In.) 1/4
Stud Hole Size (mm) 6.4
Stud Hole Spacing (In.) 0.63
Stud Hole Spacing (mm) 16
Tongue Type Standard
Tongue Thickness (In.) 0.08
Tongue Thickness (mm) 2
Tongue Width (In.) 0.48
Tongue Width (mm) 12
Overall Length (In.) 1.69
Overall Length (mm) 42.9
Barrel Type Long Barrel Length without Inspection Window
Barrel Length (In.) 1.22
Barrel Length (mm) 31
Sub Brand Pan-Lug
Wire Strip Length (In.) 1.31
Wire Strip Length (mm) 33.3
Part Features Tin plated to inhibit corrosion,color coded barrel,enclosed barrel,NEBS level 3,flared for easy wire entry.
