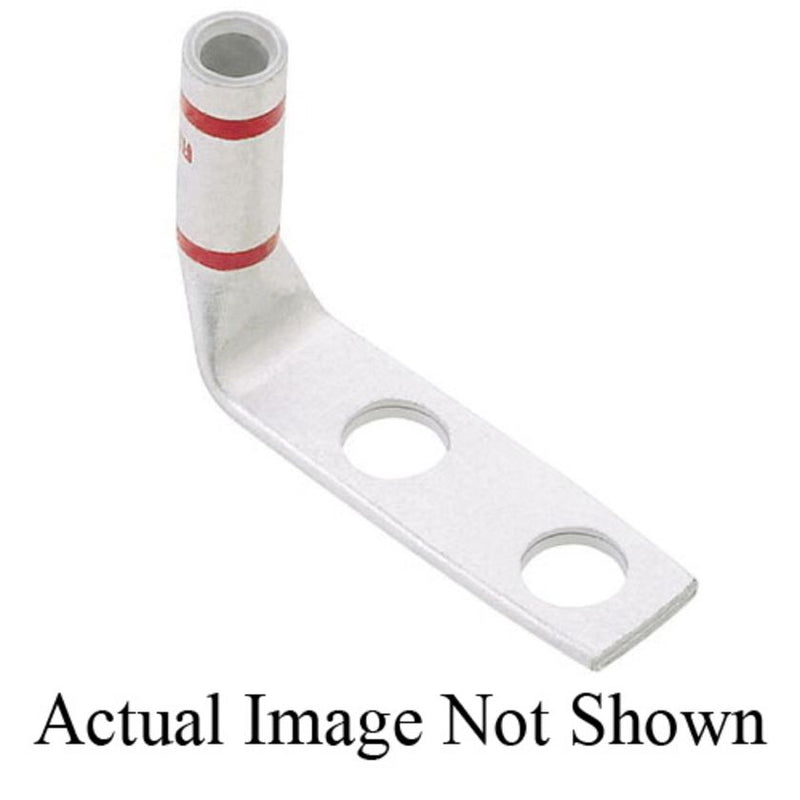

Panduit lugs [LCCX1/0-14BF-X], PAD900

Name: Panduit lugs [LCCX1/0-14BF-X], PAD900
Brand: Panduit
SKU: PAD900
Price: 373950.0 VND
Availability: InStock

Mã kho: PAD900

Mã nhà sản xuất: LCCX1/0-14BF-X

Tên nhà sản xuất: Panduit

373.950₫ - 373.950₫

373.950₫

373.950₫ - 373.950₫

373.950₫

Two-hole, flex lug, long barrel, 1/0 AWG wire, 1/4 stud hole, .75 hole spacing, 90° angle tongue.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.5
Barrel Length (mm)	38.1
Tongue Type	Standard
Tongue Width (In.)	0.85
Tongue Width (mm)	21.6
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	2.34
Overall Length (mm)	59.4
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	1.56
Wire Strip Length (mm)	40
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
