Panduit lugs [LCCX4/0-12F-X], PAD957

Name: Panduit lugs [LCCX4/0-12F-X], PAD957
Brand: Panduit
SKU: PAD957
Price: 589020.0 VND
Availability: InStock

Mã kho: PAD957

Mã nhà sản xuất: LCCX4/0-12F-X

Tên nhà sản xuất: Panduit

589.020₫ - 589.020₫

589.020₫

589.020₫ - 589.020₫

589.020₫

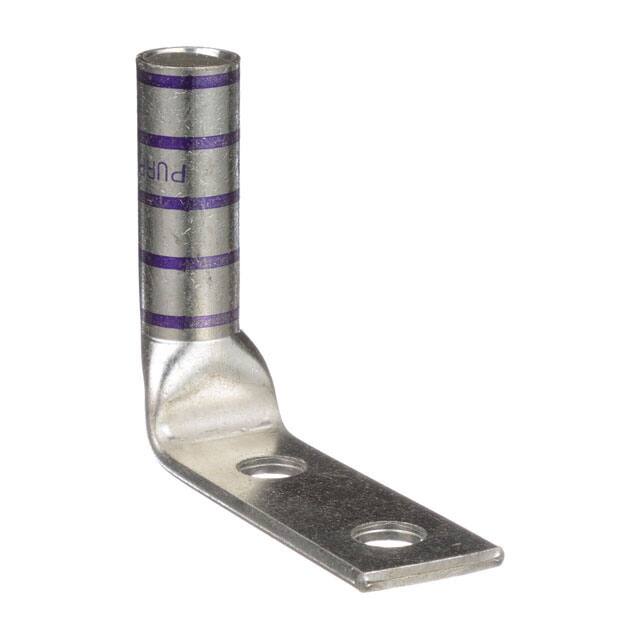

Two-hole, flex lug, long barrel, 4/0 AWG wire, 1/2 stud hole, 1.75 hole spacing, 90° angle tongue.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	2.24
Barrel Length (mm)	56.9
Tongue Type	Standard
Tongue Width (In.)	1.19
Tongue Width (mm)	30.2
Tongue Thickness (In.)	0.16
Tongue Thickness (mm)	4.1
Overall Length (In.)	4.06
Overall Length (mm)	103.1
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
Wire Strip Length (In.)	2.31
Wire Strip Length (mm)	59
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
