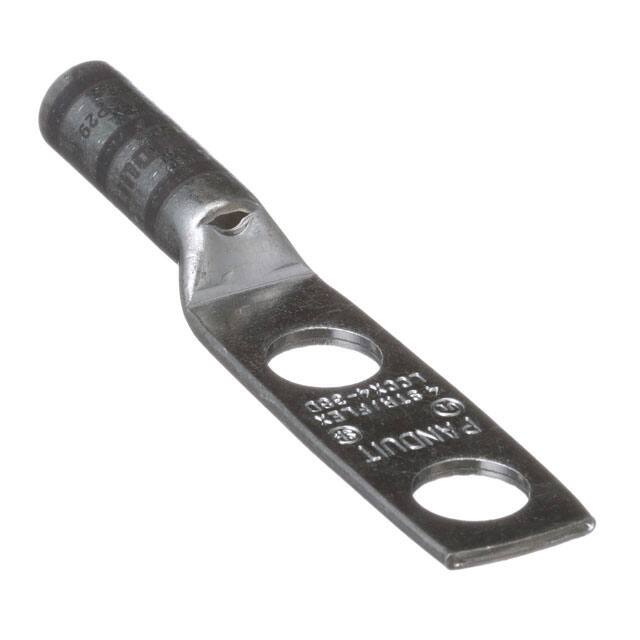

Panduit lugs [LCCX4-38D-L], PAD955

Name: Panduit lugs [LCCX4-38D-L], PAD955
Brand: Panduit
SKU: PAD955
Price: 212560.0 VND
Availability: InStock

Mã kho: PAD955

Mã nhà sản xuất: LCCX4-38D-L

Tên nhà sản xuất: Panduit

212.560₫ - 212.560₫

212.560₫

212.560₫ - 212.560₫

212.560₫

Two-hole, flex lug, long barrel, #4 AWG wire, 3/8 stud hole, 1 hole spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.05
Barrel Length (mm)	26.7
Tongue Type	Standard
Tongue Width (In.)	0.62
Tongue Width (mm)	15.7
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	3.09
Overall Length (mm)	78.5
Color Code	Gray
Panduit Die Index Number	P29
Burndy Die Index Number	8
Wire Strip Length (In.)	1.13
Wire Strip Length (mm)	29
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
