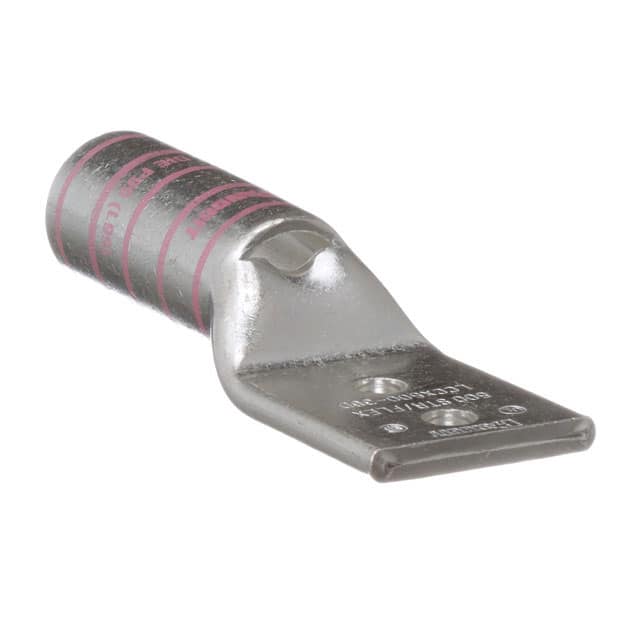

Panduit lugs [LCCX500-38D-6], PAD965

Name: Panduit lugs [LCCX500-38D-6], PAD965
Brand: Panduit
SKU: PAD965
Price: 1226270.0 VND
Availability: InStock

Mã kho: PAD965

Mã nhà sản xuất: LCCX500-38D-6

Tên nhà sản xuất: Panduit

1.226.270₫ - 1.226.270₫

1.226.270₫

1.226.270₫ - 1.226.270₫

1.226.270₫

Two-hole, flex lug, long barrel, 500 kcmil cable, 3/8 stud hole, 1 hole spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	2.88
Barrel Length (mm)	73.2
Tongue Type	Standard
Tongue Width (In.)	1.89
Tongue Width (mm)	48
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	5.72
Overall Length (mm)	145.3
Color Code	Pink
Panduit Die Index Number	P99
Burndy Die Index Number	L99
Wire Strip Length (In.)	2.94
Wire Strip Length (mm)	74.6
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
