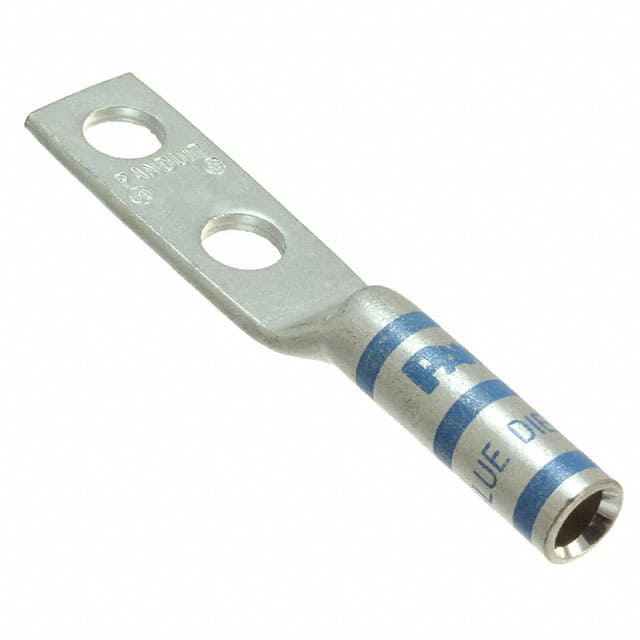

Panduit lugs [LCCX6-10B-L], PAD966

Name: Panduit lugs [LCCX6-10B-L], PAD966
Brand: Panduit
SKU: PAD966
Price: 300760.0 VND
Availability: InStock

Mã kho: PAD966

Mã nhà sản xuất: LCCX6-10B-L

Tên nhà sản xuất: Panduit

300.760₫ - 300.760₫

300.760₫

300.760₫ - 300.760₫

300.760₫

Two-hole, flex lug, long barrel, #6 AWG wire, #10 stud hole, .75 hole spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	0.19
Stud Hole Size (mm)	4.8
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Long Barrel Length with Inspection Window
Barrel Length (In.)	1.07
Barrel Length (mm)	27.2
Tongue Type	Standard
Tongue Width (In.)	0.46
Tongue Width (mm)	11.7
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	2.52
Overall Length (mm)	64
Color Code	Blue
Panduit Die Index Number	P24
Burndy Die Index Number	7
Wire Strip Length (In.)	1.13
Wire Strip Length (mm)	29
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
