Panduit lugs [LCCXN750-12-3], PAE498

Name: Panduit lugs [LCCXN750-12-3], PAE498
Brand: Panduit
SKU: PAE498
Price: 3998900.0 VND
Availability: InStock

Mã kho: PAE498

Mã nhà sản xuất: LCCXN750-12-3

Tên nhà sản xuất: Panduit

3.998.900₫ - 3.998.900₫

3.998.900₫

3.998.900₫ - 3.998.900₫

3.998.900₫

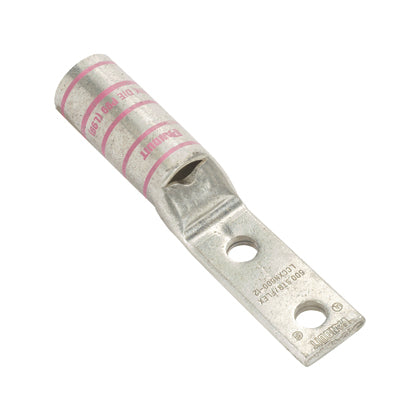

Two-hole, Flex lug, Long Barrel, Narrow Tongue, 777 kcmil cable, 1/2 stud hole, 1.75 hole spacing, with window

Connection Type	NA
Inside Diameter (In.)	1.17
Inside Diameter (mm)	29.718
Note	Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Outer Diameter (In.)	1.5
Outer Diameter (mm)	38.1
Product Type	Compression Connectors - Lugs
Lug Type	2 Stud Hole Lug
Base Material	Copper
Sub Brand	Pan-Lug
Stud Hole Size (In.)	0.5
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.45
Barrel Type	Long Barrel with Inspection Window
Barrel Length (In.)	3
Barrel Length (mm)	76.2
Tongue Type	Narrow
Tongue Width (In.)	1.5
Tongue Width (mm)	38.1
Tongue Angle	Straight
Tongue Thickness (In.)	0.32
Tongue Thickness (mm)	8.128
Overall Length (In.)	6.9
Overall Length (mm)	175.3
Finish/Coating	Tin-Plated
Standards Met	UL Listed for use in US and Canada to UL 486A-486B for power applications.
Maximum Voltage (kV)	35
Color Code	Yellow
Panduit Die Index Number	P115
Burndy Die Index Number	L115
T & B Die Index Number	115
Wire Strip Length (In.)	3.06
Wire Strip Length (mm)	77.8
Includes	NA
