Panduit lugs [LCD1/0-14BF-X], PAC704

Name: Panduit lugs [LCD1/0-14BF-X], PAC704
Brand: Panduit
SKU: PAC704
Availability: InStock

Mã kho: PAC704

Mã nhà sản xuất: LCD1/0-14BF-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

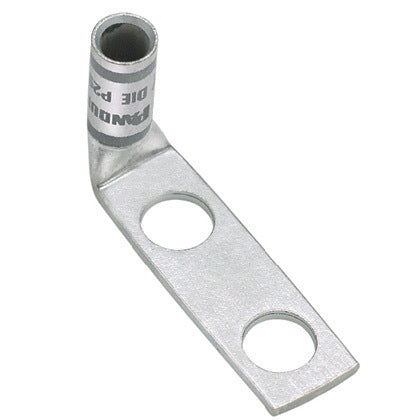

Two-hole, standard barrel lug with window, 1/0 AWG wire, 1/4 stud hole, .75 hole spacing, 90° angle tongue.

Copper Conductor Size (AWG)	1/0
Copper Conductor Size (kcmil)	106
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.94
Barrel Length (mm)	23.9
Tongue Type	Standard
Tongue Width (In.)	0.76
Tongue Width (mm)	19.3
Tongue Thickness (In.)	0.12
Tongue Thickness (mm)	3
Overall Length (In.)	2.2
Overall Length (mm)	55.9
Color Code	Pink
Panduit Die Index Number	P42
Burndy Die Index Number	12
Wire Strip Length (In.)	1
Wire Strip Length (mm)	25.4
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
