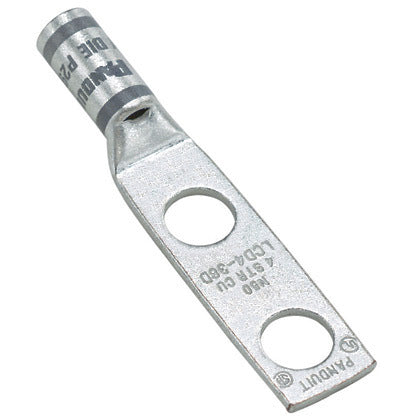

Panduit lugs [LCD1-38AD-E], PAE016

Name: Panduit lugs [LCD1-38AD-E], PAE016
Brand: Panduit
SKU: PAE016
Availability: InStock

Mã kho: PAE016

Mã nhà sản xuất: LCD1-38AD-E

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, standard barrel lug with window, #1 AWG wire, 3/8 stud hole and slotted stud hole, 5/8 hole spacing.

Copper Conductor Size (AWG)	#1
Copper Conductor Size (kcmil)	84
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	0.63
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.4
Tongue Type	Standard
Tongue Width (In.)	0.7
Tongue Width (mm)	17.8
Tongue Thickness (In.)	0.11
Tongue Thickness (mm)	2.8
Overall Length (In.)	2.99
Overall Length (mm)	75.9
Color Code	Green
Panduit Die Index Number	P37
Burndy Die Index Number	#1, U1CRT
Wire Strip Length (mm)	23.8
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
