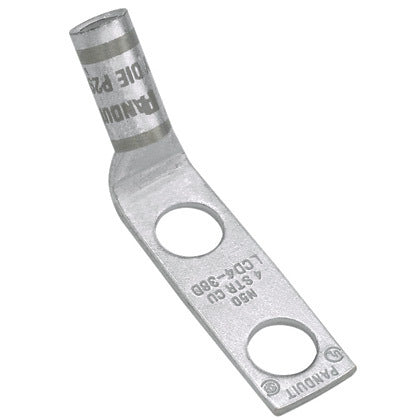

Panduit lugs [LCD2-12H-Q], PAE834

Name: Panduit lugs [LCD2-12H-Q], PAE834
Brand: Panduit
SKU: PAE834
Availability: InStock

Mã kho: PAE834

Mã nhà sản xuất: LCD2-12H-Q

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, standard barrel lug with window, #2 AWG wire, 1/2 stud hole, 1 .75 hole spacing, 45° angle tongue.

Copper Conductor Size (AWG)	#2
Copper Conductor Size (kcmil)	66.36
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.4
Tongue Type	Standard
Tongue Width (In.)	0.75
Tongue Width (mm)	19
Tongue Thickness (In.)	0.08
Tongue Thickness (mm)	2
Overall Length (In.)	3.84
Overall Length (mm)	97.5
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (mm)	23.8
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
