Panduit lugs [LCD2-14DF-Q], PAC720

Name: Panduit lugs [LCD2-14DF-Q], PAC720
Brand: Panduit
SKU: PAC720
Price: 455660.0 VND
Availability: InStock

Mã kho: PAC720

Mã nhà sản xuất: LCD2-14DF-Q

Tên nhà sản xuất: Panduit

455.660₫ - 455.660₫

455.660₫

455.660₫ - 455.660₫

455.660₫

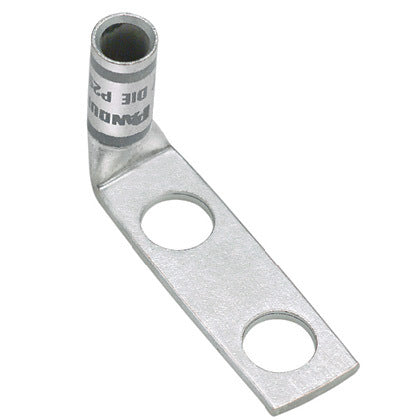

Two-hole, standard barrel lug with window, #2 AWG wire, 1/4 stud hole, 1 hole spacing, 90° angle tongue.

Copper Conductor Size (AWG)	#2
Copper Conductor Size (kcmil)	66.36
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.4
Tongue Type	Standard
Tongue Width (In.)	0.6
Tongue Width (mm)	15.2
Tongue Thickness (In.)	0.1
Tongue Thickness (mm)	2.5
Overall Length (In.)	2.24
Overall Length (mm)	56.9
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (mm)	23.8
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
