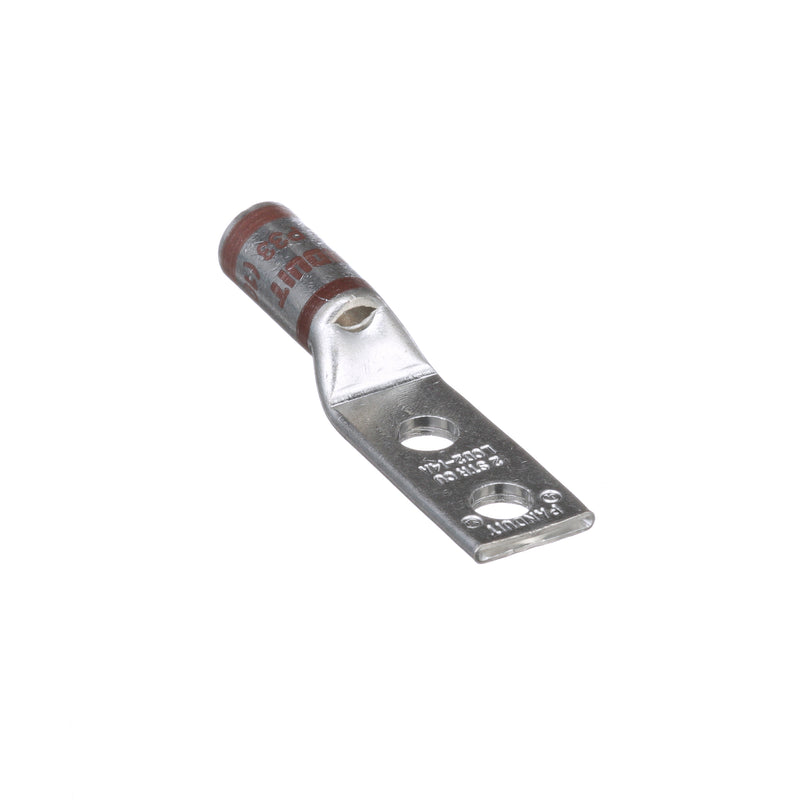

Panduit lugs [LCD2-56D-Q], PAE801

Name: Panduit lugs [LCD2-56D-Q], PAE801
Brand: Panduit
SKU: PAE801
Availability: InStock

Mã kho: PAE801

Mã nhà sản xuất: LCD2-56D-Q

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Copper Compression Lug, 2 Hole, #2 AWG Code Conductor, Standard Barrel, 5/16" Stud, 1" Hole Spacing

Lug Type	2 Stud Hole Lug
Sub Brand	PAN LUG
Stud Hole Size (mm)	7.9375
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.88
Barrel Length (mm)	22.352
Tongue Type	Standard
Tongue Width (In.)	0.66
Tongue Width (mm)	16.764
Tongue Angle	Straight
Tongue Thickness (In.)	0.1
Tongue Thickness (mm)	2.54
Overall Length (In.)	2.9
Overall Length (mm)	73.66
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia
Maximum Voltage (kV)	35
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
T & B Die Index Number	33
Wire Strip Length (mm)	0.938
