Panduit lugs [LCD3/0-56D-X], PAC747

Name: Panduit lugs [LCD3/0-56D-X], PAC747
Brand: Panduit
SKU: PAC747
Price: 531730.0 VND
Availability: InStock

Mã kho: PAC747

Mã nhà sản xuất: LCD3/0-56D-X

Tên nhà sản xuất: Panduit

531.730₫ - 531.730₫

531.730₫

531.730₫ - 531.730₫

531.730₫

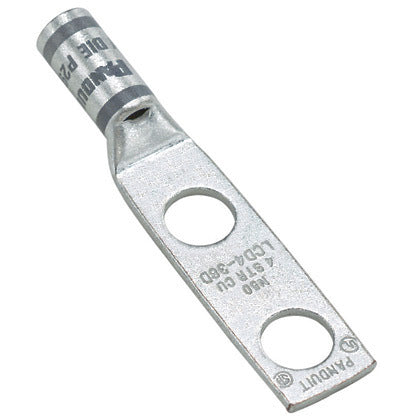

Two-hole, standard barrel lug with window, 3/0 AWG wire, 5/16 stud hole, 1 hole spacing.

Copper Conductor Size (AWG)	3/0
Copper Conductor Size (kcmil)	168
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.491
Stud Hole Size (mm)	7.9
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.14
Barrel Length (mm)	29
Tongue Type	Standard
Tongue Width (In.)	0.96
Tongue Width (mm)	24.4
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	3.27
Overall Length (mm)	83.1
Color Code	Orange
Panduit Die Index Number	P50
Burndy Die Index Number	14
Wire Strip Length (In.)	1.19
Wire Strip Length (mm)	30.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
