Panduit lugs [LCD350-12-X], PAC758

Name: Panduit lugs [LCD350-12-X], PAC758
Brand: Panduit
SKU: PAC758
Price: 530260.0 VND
Availability: InStock

Mã kho: PAC758

Mã nhà sản xuất: LCD350-12-X

Tên nhà sản xuất: Panduit

530.260₫ - 530.260₫

530.260₫

530.260₫ - 530.260₫

530.260₫

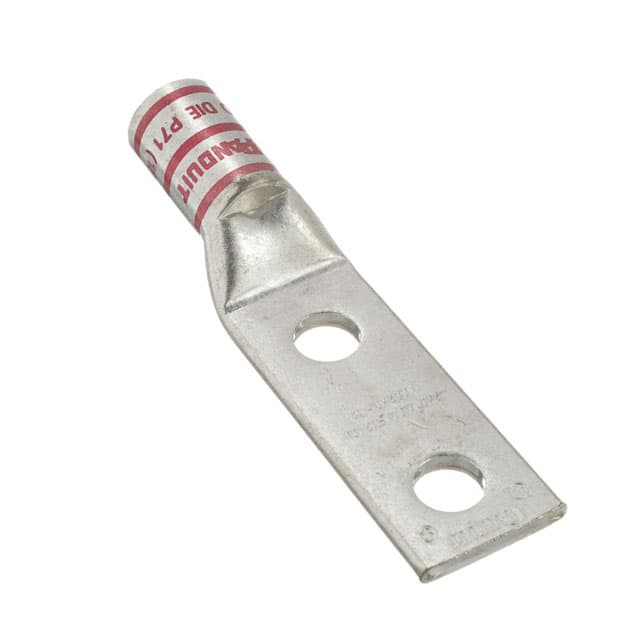

Two-hole, standard barrel lug with window, 350 kcmil cable, 1/2 stud hole, 1.75 hole spacing, NEMA hole sizes and spacing.

Copper Conductor Size (kcmil)	350
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.6
Tongue Type	Standard
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	4.96
Overall Length (mm)	126
Color Code	Red
Panduit Die Index Number	P71
Burndy Die Index Number	18
Wire Strip Length (In.)	1.5
Wire Strip Length (mm)	38.1
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
