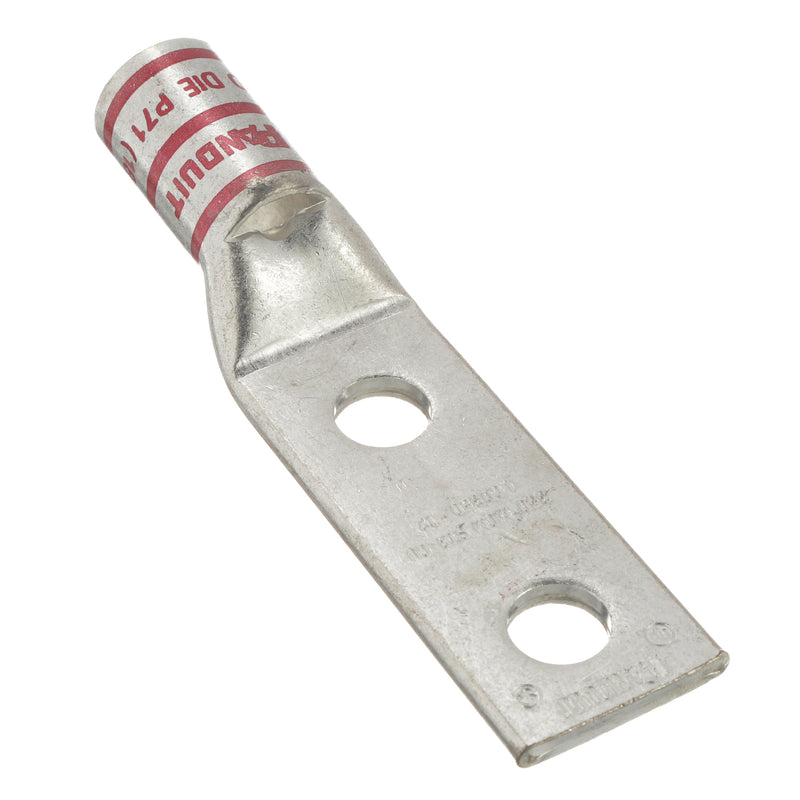

Panduit lugs [LCD350-56B-X], PAE804

Name: Panduit lugs [LCD350-56B-X], PAE804
Brand: Panduit
SKU: PAE804
Availability: InStock

Mã kho: PAE804

Mã nhà sản xuất: LCD350-56B-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Copper Compression Lug, 2 Hole, 350 kcmil Code Conductor, Standard Barrel, 5/16" Stud, .75" Hole Spacing

Lug Type	2 Stud Hole Lug
Sub Brand	PAN LUG
Stud Hole Size (mm)	7.9375
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.05
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	1.44
Barrel Length (mm)	36.576
Tongue Type	Standard
Tongue Width (In.)	1.28
Tongue Width (mm)	32.512
Tongue Angle	Straight
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.318
Overall Length (In.)	3.72
Overall Length (mm)	94.488
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia
Maximum Voltage (kV)	35
Color Code	Red
Panduit Die Index Number	P71
Burndy Die Index Number	18
T & B Die Index Number	71
Wire Strip Length (mm)	1.5
