Panduit lugs [LCD4/0-56B-X], PAE810

Name: Panduit lugs [LCD4/0-56B-X], PAE810
Brand: Panduit
SKU: PAE810
Availability: InStock

Mã kho: PAE810

Mã nhà sản xuất: LCD4/0-56B-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

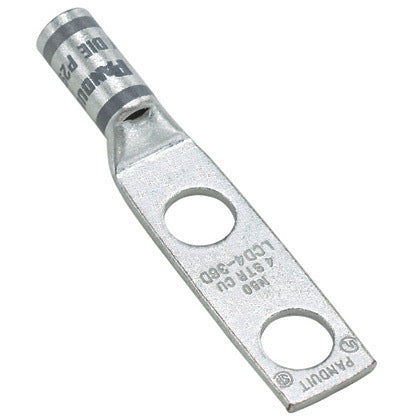

Copper Compression Lug, 2 Hole, 4/0 AWG Code Conductor, Standard Barrel, 5/16" Stud, .75" Hole Spacing

Lug Type	2 Stud Hole Lug
Sub Brand	PAN LUG
Stud Hole Size (mm)	7.9375
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.05
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	1.19
Barrel Length (mm)	30.226
Tongue Type	Standard
Tongue Width (In.)	1.06
Tongue Width (mm)	26.924
Tongue Angle	Straight
Tongue Thickness (In.)	0.14
Tongue Thickness (mm)	3.556
Overall Length (In.)	3.12
Overall Length (mm)	79.248
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia
Maximum Voltage (kV)	35
Color Code	Purple
Panduit Die Index Number	P54
Burndy Die Index Number	15
T & B Die Index Number	54
Wire Strip Length (mm)	1.25
