Panduit lugs [LCD4/0-56BF-X], PAE811

Mã kho: PAE811
Mã nhà sản xuất: LCD4/0-56BF-X
Tên nhà sản xuất: Panduit
Original price 742.980₫ - Original price 742.980₫
Original price
742.980₫
742.980₫ - 742.980₫
Current price 742.980₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD4/0-56BF-X

MÔ TẢ SẢN PHẨM

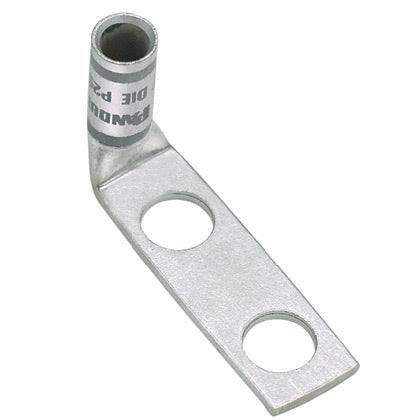

Copper Compression Lug, 2 Hole, 4/0 AWG Code Conductor, Standard Barrel, 5/16" Stud, .75" Hole Spacing, 90° Bent

_THÔNG SỐ KỸ THUẬT:

Lug Type 2 Stud Hole Lug
Sub Brand PAN LUG
Stud Hole Size (mm) 7.9375
Stud Hole Spacing (In.) 0.75
Stud Hole Spacing (mm) 19.05
Barrel Type Standard Barrel with Inspection Window
Barrel Length (In.) 1.19
Barrel Length (mm) 30.226
Tongue Type Standard
Tongue Width (In.) 1.06
Tongue Width (mm) 26.924
Tongue Angle 90°
Tongue Thickness (In.) 0.14
Tongue Thickness (mm) 3.556
Overall Length (In.) 2.52
Overall Length (mm) 64.008
Finish/Coating Tin-Plated
Standards Met UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies; meets NEBS Level 3 tested by Telcordia
Maximum Voltage (kV) 35
Color Code Purple
Panduit Die Index Number P54
Burndy Die Index Number 15
T & B Die Index Number 54
Wire Strip Length (mm) 1.25
