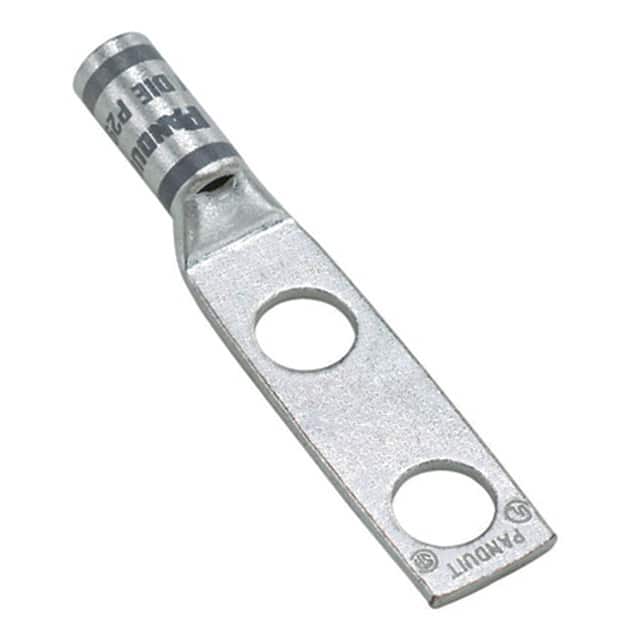

Panduit lugs [LCD4-14B-L], PAC962

Panduit lugs [LCD4-14B-L], PAC962

Mã kho: PAC962
Mã nhà sản xuất: LCD4-14B-L
Tên nhà sản xuất: Panduit
148.500₫ - 148.500₫
148.500₫
148.500₫ - 148.500₫
148.500₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD4-14B-L

MÔ TẢ SẢN PHẨM

Two-hole, standard barrel lug with window, #4 — #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, .75 hole spacing.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #4
Copper Conductor Size (kcmil) 42
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.826
Stud Hole Size (mm) 6.4
Stud Hole Spacing (In.) 0.75
Stud Hole Spacing (mm) 19.1
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.81
Barrel Length (mm) 20.6
Tongue Type Standard
Tongue Width (In.) 0.55
Tongue Width (mm) 14
Tongue Thickness (In.) 0.09
Tongue Thickness (mm) 2.3
Overall Length (In.) 2.38
Overall Length (mm) 60.5
Color Code Gray
Panduit Die Index Number 29
Burndy Die Index Number 8
Wire Strip Length (In.) 42,954
Wire Strip Length (mm) 22.2
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
