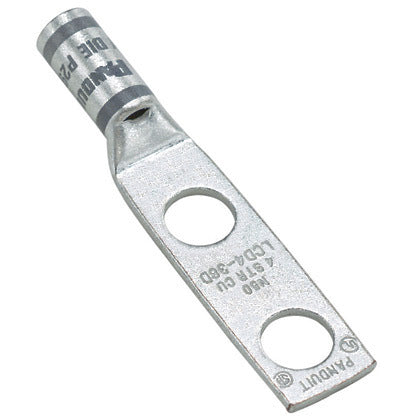

Panduit lugs [LCD750-58G-6], PAE062

Name: Panduit lugs [LCD750-58G-6], PAE062
Brand: Panduit
SKU: PAE062
Availability: InStock

Mã kho: PAE062

Mã nhà sản xuất: LCD750-58G-6

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, standard barrel lug with window, 750 kcmil cable, 5/8 stud hole, 1.50 hole spacing.

Copper Conductor Size (kcmil)	750
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.952
Stud Hole Size (mm)	15.9
Stud Hole Spacing (In.)	1.5
Stud Hole Spacing (mm)	38.1
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.88
Barrel Length (mm)	47.8
Tongue Type	Standard
Tongue Width (In.)	1.89
Tongue Width (mm)	48
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	5.46
Overall Length (mm)	138.7
Color Code	Black
Panduit Die Index Number	P106
Burndy Die Index Number	24
Wire Strip Length (In.)	1.94
Wire Strip Length (mm)	49.2
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
