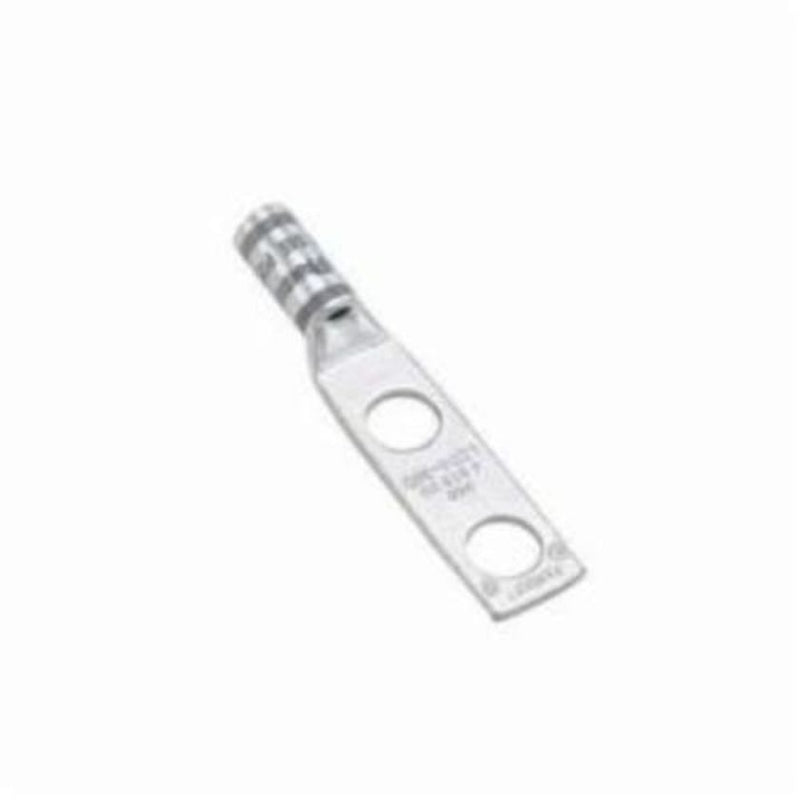

Panduit lugs [LCD8-14D-L], PAE067

Name: Panduit lugs [LCD8-14D-L], PAE067
Brand: Panduit
SKU: PAE067
Price: 137780.0 VND
Availability: InStock

Mã kho: PAE067

Mã nhà sản xuất: LCD8-14D-L

Tên nhà sản xuất: Panduit

137.780₫ - 137.780₫

137.780₫

137.780₫ - 137.780₫

137.780₫

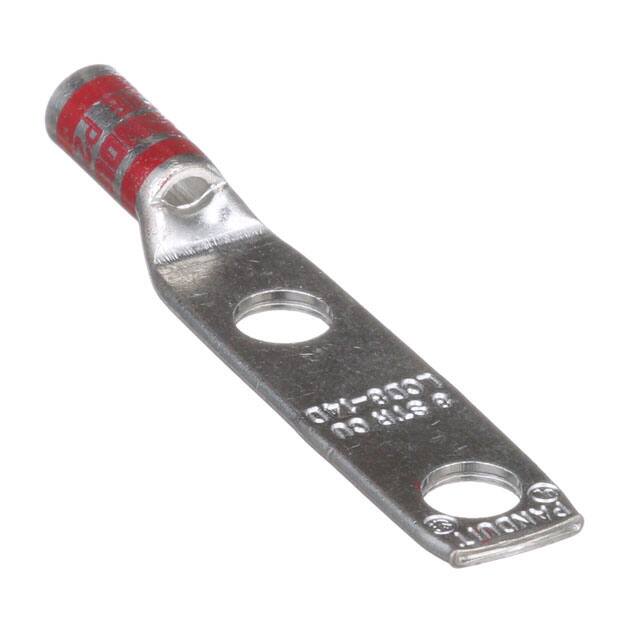

Two-hole, standard barrel lug with window, #8 AWG wire, 1/4 stud hole, 1 hole spacing.

Copper Conductor Size (AWG)	#8
Copper Conductor Size (kcmil)	17
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.56
Barrel Length (mm)	14.2
Tongue Type	Standard
Tongue Width (In.)	0.48
Tongue Width (mm)	12.2
Tongue Thickness (In.)	0.07
Tongue Thickness (mm)	1.8
Overall Length (In.)	2.34
Overall Length (mm)	59.4
Color Code	Red
Panduit Die Index Number	P21
Burndy Die Index Number	49
Wire Strip Length (In.)	42,952
Wire Strip Length (mm)	15.9
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
