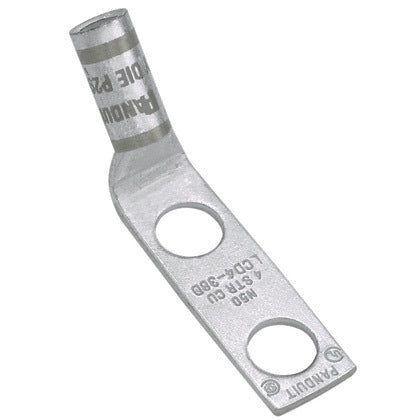

Panduit LCD8-38DH-L

Panduit lugs [LCD8-38DH-L], PAE071

Mã kho: PAE071
Mã nhà sản xuất: LCD8-38DH-L
Tên nhà sản xuất: Panduit
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCD8-38DH-L

MÔ TẢ SẢN PHẨM

Two-hole, standard barrel lug with window, #8 AWG wire, 3/8 stud hole, 1 hole spacing, 45° angle tongue.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (AWG) #8
Copper Conductor Size (kcmil) 17
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.95
Stud Hole Size (mm) 9.5
Stud Hole Spacing (In.) 1
Stud Hole Spacing (mm) 25.4
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 0.56
Barrel Length (mm) 14.2
Tongue Type Standard
Tongue Width (In.) 0.63
Tongue Width (mm) 15.7
Tongue Thickness (In.) 0.05
Tongue Thickness (mm) 1.3
Overall Length (In.) 2.4
Overall Length (mm) 61
Color Code Red
Panduit Die Index Number P21
Burndy Die Index Number 49
Wire Strip Length (In.) 42,952
Wire Strip Length (mm) 15.9
Part Features Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
