Panduit lugs [LCDN2/0-14AH-X], PAE503

Name: Panduit lugs [LCDN2/0-14AH-X], PAE503
Brand: Panduit
SKU: PAE503
Price: 655400.0 VND
Availability: InStock

Mã kho: PAE503

Mã nhà sản xuất: LCDN2/0-14AH-X

Tên nhà sản xuất: Panduit

655.400₫ - 655.400₫

655.400₫

655.400₫ - 655.400₫

655.400₫

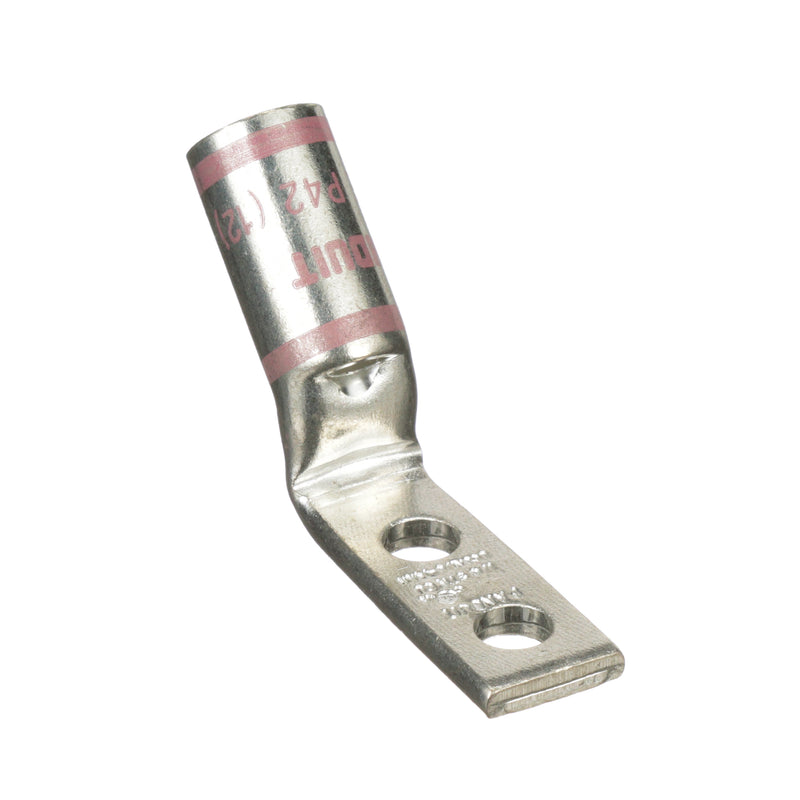

Copper Compression Lug, 2 Hole, #2/0 AWG, Narrow Tongue, 1/4" Stud, 0.625" Hole Spacing, 45° Angle Tongue

Lug Type	2 Stud Hole Lug
Sub Brand	NA
Stud Hole Size (In.)	0.25
Stud Hole Spacing (In.)	0.63
Stud Hole Spacing (mm)	15.9
Barrel Type	Standard Barrel with Inspection Window
Barrel Length (In.)	0.98
Barrel Length (mm)	24.9
Tongue Type	Narrow
Tongue Width (In.)	0.58
Tongue Width (mm)	14.7
Tongue Angle	45°
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	2.39
Overall Length (mm)	60.7
Finish/Coating	Tin-Plated
Standards Met	UL Listed and CSA Certified, 90° C temperature rating when crimped with Panduit and specified competitor crimping tools and dies
Maximum Voltage (kV)	35
Color Code	Black
Panduit Die Index Number	P45
Burndy Die Index Number	13
T & B Die Index Number	45
Wire Strip Length (In.)	1 1/16
Part Features	NA
