Panduit lugs [LCDN2/0-14D-X], PAE084

Name: Panduit lugs [LCDN2/0-14D-X], PAE084
Brand: Panduit
SKU: PAE084
Availability: InStock

Mã kho: PAE084

Mã nhà sản xuất: LCDN2/0-14D-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

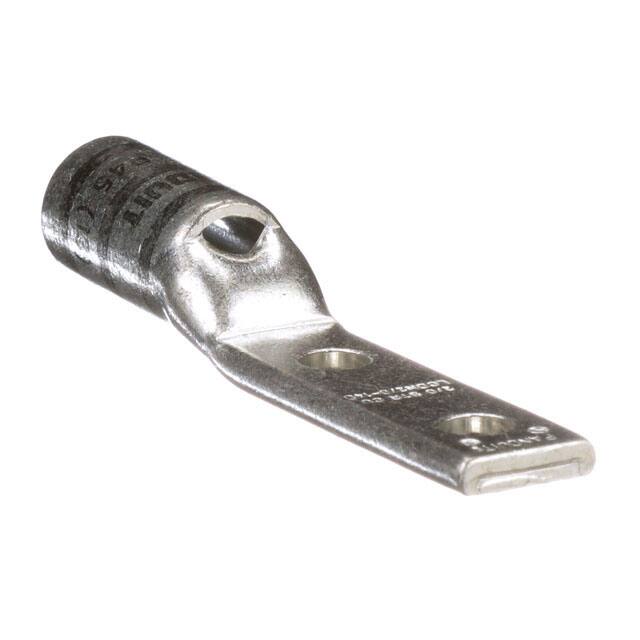

Two-hole, standard barrel with window, narrow tongue lug, 2/0 AWG wire, 1/4 stud hole, 1 hole spacing.

Copper Conductor Size (AWG)	2/0
Copper Conductor Size (kcmil)	133.1
Product Type	Tin-Plated Copper Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.98
Barrel Length (mm)	24.9
Tongue Type	Narrow
Tongue Width (In.)	0.58
Tongue Width (mm)	14.7
Tongue Thickness (In.)	0.15
Tongue Thickness (mm)	3.3
Overall Length (In.)	3.11
Overall Length (mm)	78.5
Color Code	Black
Panduit Die Index Number	P45
Burndy Die Index Number	13
Wire Strip Length (In.)	1.06
Wire Strip Length (mm)	27
Part Features	Tin plated to inhibit corrosion,color coded barrel, narrow tongue for limited space apps.
