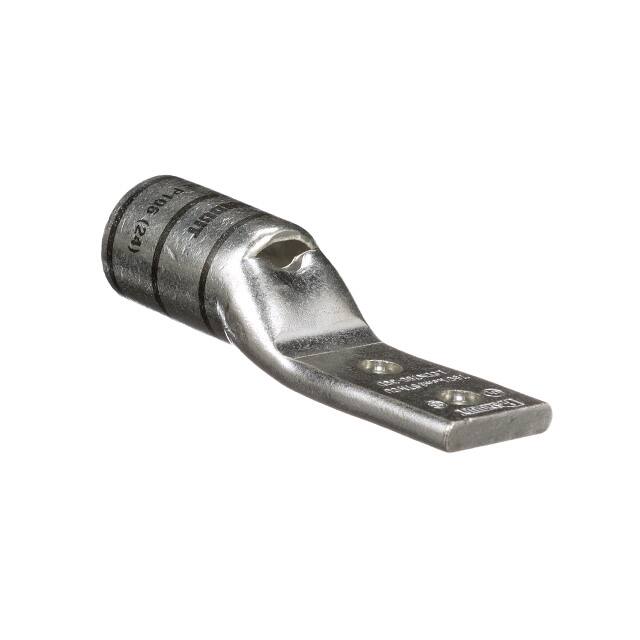

Panduit lugs [LCDN750-38D-6], PAE091

Mã kho: PAE091
Mã nhà sản xuất: LCDN750-38D-6
Tên nhà sản xuất: Panduit
Original price 1.351.780₫ - Original price 1.351.780₫
Original price
1.351.780₫
1.351.780₫ - 1.351.780₫
Current price 1.351.780₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Wire Termination / Lugs Splices Split Bolts Accessories / Mechanical & Compression Lugs & Splices: Panduit LCDN750-38D-6

MÔ TẢ SẢN PHẨM

Two-hole, standard barrel with window, narrow tongue lug, 750 kcmil cable, 3/8 stud hole, 1 hole spacing.

_THÔNG SỐ KỸ THUẬT:

Copper Conductor Size (kcmil) 750
Product Type Tin-Plated Copper Compression Connectors - Lugs
Sub Brand Pan-Lug
Stud Hole Size (In.) 42.95
Stud Hole Size (mm) 9.5
Stud Hole Spacing (In.) 1
Stud Hole Spacing (mm) 25.4
Barrel Type Standard Barrel Length with Inspection Window
Barrel Length (In.) 1.88
Barrel Length (mm) 47.8
Tongue Type Narrow
Tongue Width (In.) 1.3
Tongue Width (mm) 33
Tongue Thickness (In.) 0.29
Tongue Thickness (mm) 6.6
Overall Length (In.) 4.72
Overall Length (mm) 119.9
Color Code Black
Panduit Die Index Number P106
Burndy Die Index Number 24
Wire Strip Length (In.) 1.94
Wire Strip Length (mm) 49.2
Part Features Tin plated to inhibit corrosion,color coded barrel, narrow tongue for limited space apps.
