Panduit lugs [LCDX2/0-12DH-X], PAE150

Name: Panduit lugs [LCDX2/0-12DH-X], PAE150
Brand: Panduit
SKU: PAE150
Availability: InStock

Mã kho: PAE150

Mã nhà sản xuất: LCDX2/0-12DH-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

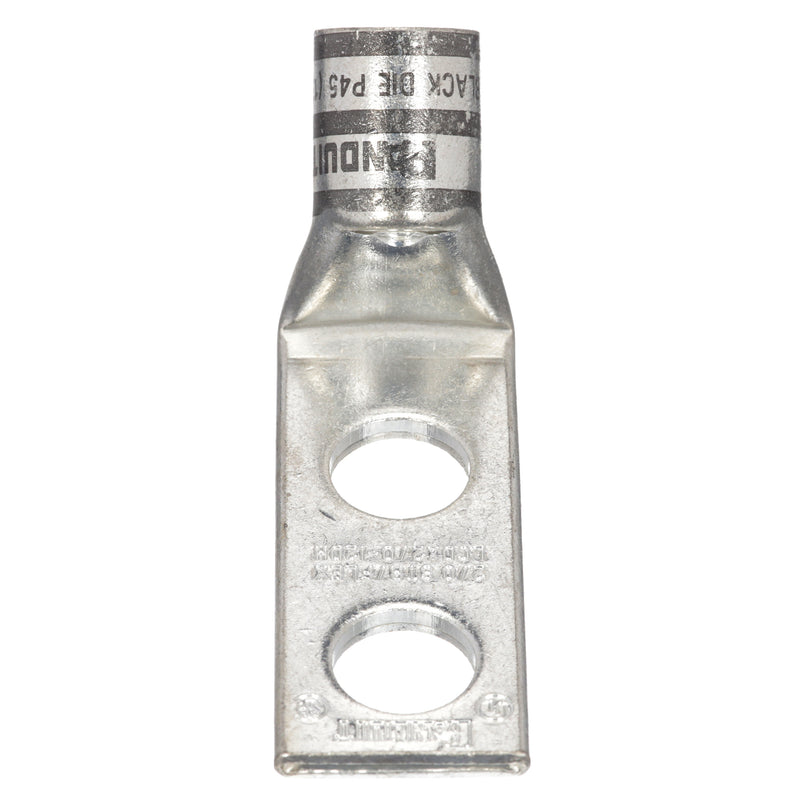

Two-hole, flex lug, 2/0 AWG wire, 1/2 stud hole, 1 hole spacing, 45° angle tongue.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.83
Barrel Length (mm)	21.1
Tongue Type	Standard
Tongue Width (In.)	0.96
Tongue Width (mm)	24.4
Tongue Thickness (In.)	0.13
Tongue Thickness (mm)	3.3
Overall Length (In.)	3.03
Overall Length (mm)	77
Color Code	Black
Panduit Die Index Number	P45
Burndy Die Index Number	13
Wire Strip Length (In.)	42,954
Wire Strip Length (mm)	22
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
