Panduit lugs [LCDX2-14B-E], PAE136

Name: Panduit lugs [LCDX2-14B-E], PAE136
Brand: Panduit
SKU: PAE136
Price: 236540.0 VND
Availability: InStock

Mã kho: PAE136

Mã nhà sản xuất: LCDX2-14B-E

Tên nhà sản xuất: Panduit

236.540₫ - 236.540₫

236.540₫

236.540₫ - 236.540₫

236.540₫

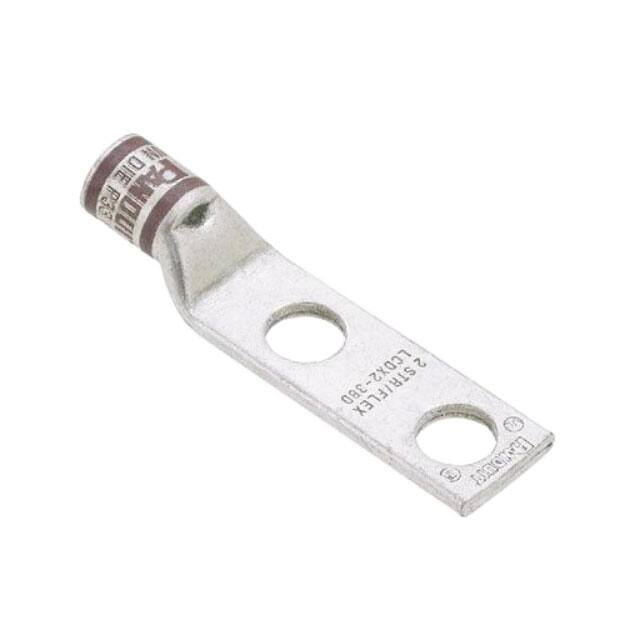

Two-hole, flex lug, #2 AWG wire, 1/4 stud hole, .75 hole spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.826
Stud Hole Size (mm)	6.4
Stud Hole Spacing (In.)	0.75
Stud Hole Spacing (mm)	19.1
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	0.59
Barrel Length (mm)	15
Tongue Type	Standard
Tongue Width (In.)	0.7
Tongue Width (mm)	17.8
Tongue Thickness (In.)	0.11
Tongue Thickness (mm)	2.8
Overall Length (In.)	2.25
Overall Length (mm)	57.2
Color Code	Brown
Panduit Die Index Number	P33
Burndy Die Index Number	10
Wire Strip Length (In.)	42,675
Wire Strip Length (mm)	17
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
