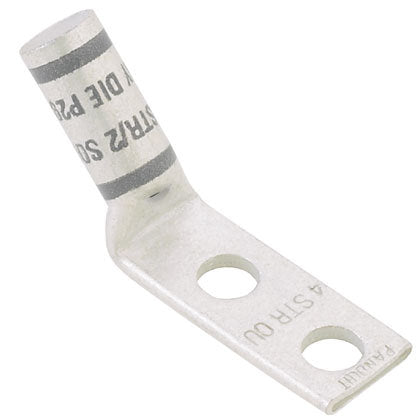

Panduit lugs [LCDX250-38H-X], PAE173

Name: Panduit lugs [LCDX250-38H-X], PAE173
Brand: Panduit
SKU: PAE173
Availability: InStock

Mã kho: PAE173

Mã nhà sản xuất: LCDX250-38H-X

Tên nhà sản xuất: Panduit

0₫ - 0₫

0₫

0₫ - 0₫

0₫

Two-hole, flex lug, 250 kcmil cable, 3/8 stud hole, 1.75 hole spacing, 45° angle tongue.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.03
Barrel Length (mm)	26.2
Tongue Type	Standard
Tongue Width (In.)	1.28
Tongue Width (mm)	32.5
Tongue Thickness (In.)	0.17
Tongue Thickness (mm)	4.3
Overall Length (In.)	3.86
Overall Length (mm)	98
Color Code	Yellow
Panduit Die Index Number	P62
Burndy Die Index Number	16
Wire Strip Length (In.)	1.06
Wire Strip Length (mm)	75
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
