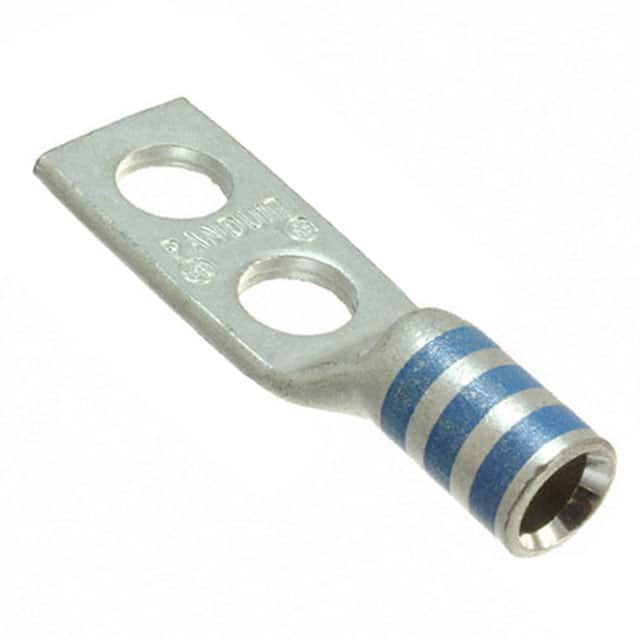

Panduit lugs [LCDX350-38D-6], PAE197

Name: Panduit lugs [LCDX350-38D-6], PAE197
Brand: Panduit
SKU: PAE197
Price: 667280.0 VND
Availability: InStock

Mã kho: PAE197

Mã nhà sản xuất: LCDX350-38D-6

Tên nhà sản xuất: Panduit

667.280₫ - 667.280₫

667.280₫

667.280₫ - 667.280₫

667.280₫

Two-hole, flex lug, 350 kcmil cable, 3/8 stud hole, 1 hole spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.95
Stud Hole Size (mm)	9.5
Stud Hole Spacing (In.)	1
Stud Hole Spacing (mm)	25.4
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.29
Barrel Length (mm)	32.8
Tongue Type	Standard
Tongue Width (In.)	1.54
Tongue Width (mm)	39.1
Tongue Thickness (In.)	0.22
Tongue Thickness (mm)	5.6
Overall Length (In.)	3.74
Overall Length (mm)	95
Color Code	Blue
Panduit Die Index Number	P76
Burndy Die Index Number	19
Wire Strip Length (In.)	1.38
Wire Strip Length (mm)	35
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
