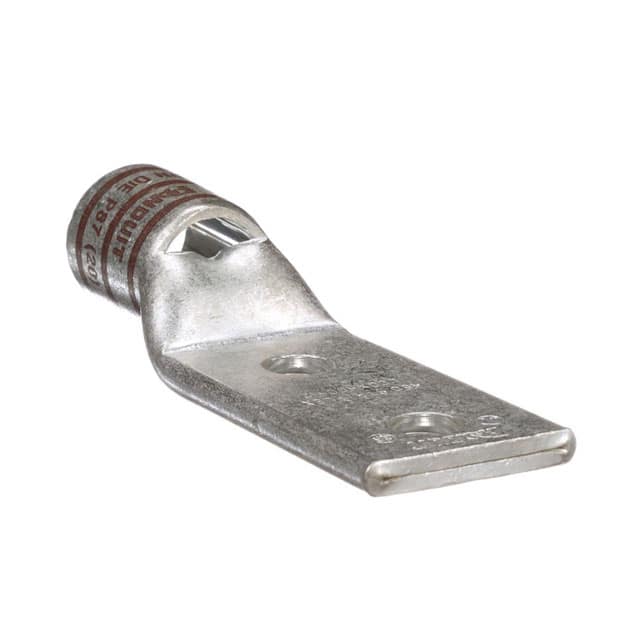

Panduit lugs [LCDX450-12-6], PAE234

Name: Panduit lugs [LCDX450-12-6], PAE234
Brand: Panduit
SKU: PAE234
Price: 1070560.0 VND
Availability: InStock

Mã kho: PAE234

Mã nhà sản xuất: LCDX450-12-6

Tên nhà sản xuất: Panduit

1.070.560₫ - 1.070.560₫

1.070.560₫

1.070.560₫ - 1.070.560₫

1.070.560₫

Two-hole, flex lug, 450 kcmil cable, 1/2 stud hole, 1.75 hole spacing.

Product Type	Compression Connectors - Lugs
Sub Brand	Pan-Lug
Stud Hole Size (In.)	42.767
Stud Hole Size (mm)	12.7
Stud Hole Spacing (In.)	1.75
Stud Hole Spacing (mm)	44.5
Barrel Type	Standard Barrel Length with Inspection Window
Barrel Length (In.)	1.4
Barrel Length (mm)	35.6
Tongue Type	Standard
Tongue Width (In.)	1.7
Tongue Width (mm)	43.2
Tongue Thickness (In.)	0.26
Tongue Thickness (mm)	6.6
Overall Length (In.)	5.08
Overall Length (mm)	129
Color Code	Brown
Panduit Die Index Number	P87
Burndy Die Index Number	20
Wire Strip Length (In.)	1.44
Wire Strip Length (mm)	37
Part Features	Tin plated to inhibit corrosion,color coded barrel,inspection window, beveled wire entry.
